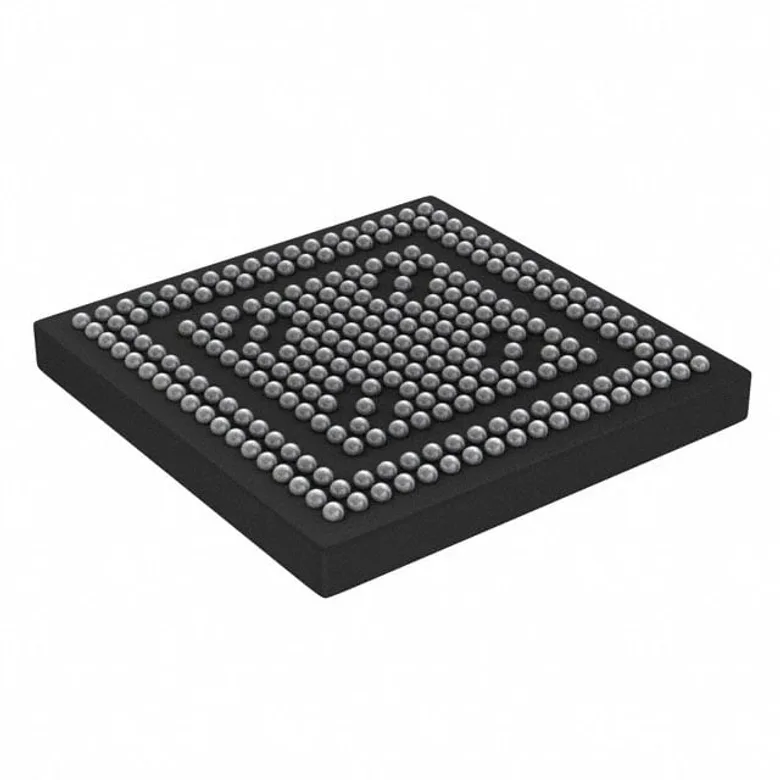

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology ATSAMA5D24B-CU
Manufacturer
Manufacturer Product Number
ATSAMA5D24B-CU
Description
IC MPU SAMA5D2 500MHZ 256TFBGA
Manufacturer Standard Lead Time Contact us
Detailed Description
ARM® Cortex®-A5 Microprocessor IC SAMA5D2 1 Core, 32-Bit 500MHz 256-TFBGA (8x8)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Product Status
Obsolete
Operating Temperature
-40°C ~ 85°C (TA)
Core Processor
ARM® Cortex®-A5
Mounting Type
Surface Mount
Voltage - I/O
3.3V
Supplier Device Package
256-TFBGA (8x8)
Speed
500MHz
Ethernet
10/100Mbps (1)
USB
USB 2.0 + HSIC
Package / Case
256-TFBGA
Number of Cores/Bus Width
1 Core, 32-Bit
Co-Processors/DSP
Multimedia; NEON™ MPE
RAM Controllers
LPDDR1, LPDDR2, LPDDR3, DDR2, DDR3, DDR3L, QSPI
Graphics Acceleration
Yes
Display & Interface Controllers
Keyboard, LCD, Touchscreen
Security Features
ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC
SATA
-
Additional Interfaces
I2C, SMC, SPI, UART, USART, QSPI
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Design Resources
Training Modules
Environmental Information
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
ATSAMA5D24B-CU
6189163
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
