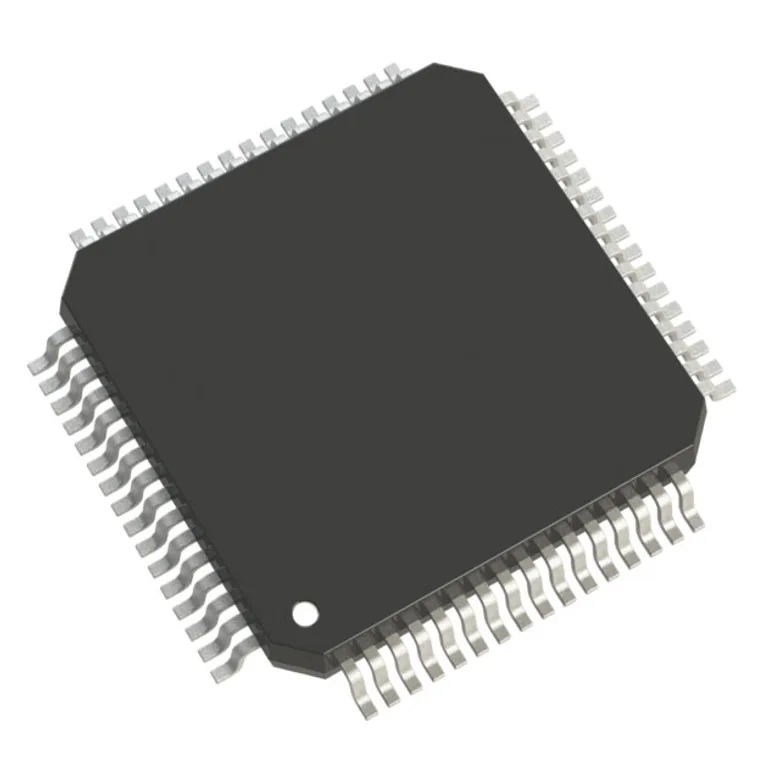

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology DSPIC30F6012A-20E/PF
Manufacturer
Manufacturer Product Number
DSPIC30F6012A-20E/PF
Description
IC MCU 16BIT 144KB FLASH 64TQFP
Manufacturer Standard Lead Time Contact us
Detailed Description
IC MCU 16BIT 144KB FLASH 64TQFP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Number of I/O
52
Operating Temperature
-40°C ~ 125°C (TA)
DigiKey Programmable
Not Verified
Oscillator Type
Internal
Program Memory Type
FLASH
EEPROM Size
4K x 8
Core Processor
dsPIC
Data Converters
A/D 16x12b
Core Size
16-Bit
Mounting Type
Surface Mount
Supplier Device Package
64-TQFP (14x14)
Speed
20 MIPS
Program Memory Size
144KB (48K x 24)
RAM Size
8K x 8
Package / Case
64-TQFP
Voltage - Supply (Vcc/Vdd)
2.5V ~ 5.5V
Connectivity
CANbus, I2C, SPI, UART/USART
Peripherals
AC'97, Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT
Documents & Media
Resource Type
Link
Reference Designs
Design Resources
Training Modules
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
DSPIC30F6012A-20E/PF
1098373
DSPIC30F6012A-20E/PF-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 129
Packaging Quantity Unit Price Ext Price
1 405.000 ₫ 405.000 ₫
405.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
405.000 ₫
405.000 ₫
25
367.000 ₫
9.175.000 ₫
100
335.000 ₫
33.500.000 ₫
MOQ 1 · Order multiple 1
