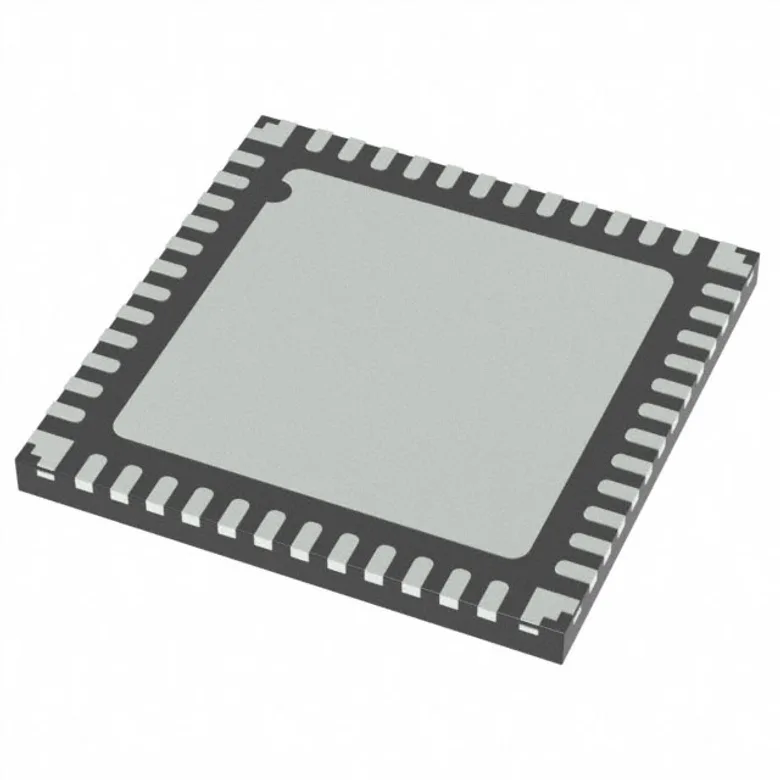

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology DSPIC33CH128MP505-E/M4
Manufacturer
Manufacturer Product Number
DSPIC33CH128MP505-E/M4
Description
IC MCU 16BIT 152KB FLASH 48UQFN
Manufacturer Standard Lead Time Contact us
Detailed Description
dsPIC dsPIC™ 33CH, Functional Safety (FuSa) Microcontroller IC 16-Bit Dual-Core 180MHz, 200MHz 152KB (152K x 8) FLASH, PRAM 48-UQFN (6x6)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Number of I/O
39
Operating Temperature
-40°C ~ 125°C (TA)
DigiKey Programmable
Not Verified
Qualification
AEC-Q100
Oscillator Type
Internal
Program Memory Type
FLASH, PRAM
EEPROM Size
-
Core Processor
dsPIC
Data Converters
A/D 31x12b; D/A 4x12b
Core Size
16-Bit Dual-Core
Mounting Type
Surface Mount
Supplier Device Package
48-UQFN (6x6)
Speed
180MHz, 200MHz
Program Memory Size
152KB (152K x 8)
RAM Size
20K x 8
Package / Case
48-UFQFN Exposed Pad
Grade
Automotive
Voltage - Supply (Vcc/Vdd)
3V ~ 3.6V
Connectivity
CANbus, I2C, IrDA, LINbus, SPI, UART/USART
Peripherals
Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, WDT
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Videos
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
DSPIC33CH128MP505-E/M4
9657696
DSPIC33CH128MP505-E/M4-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 12
Packaging Quantity Unit Price Ext Price
1 73.000 ₫ 73.000 ₫
73.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
73.000 ₫
73.000 ₫
25
66.000 ₫
1.650.000 ₫
100
60.000 ₫
6.000.000 ₫
MOQ 1 · Order multiple 1
