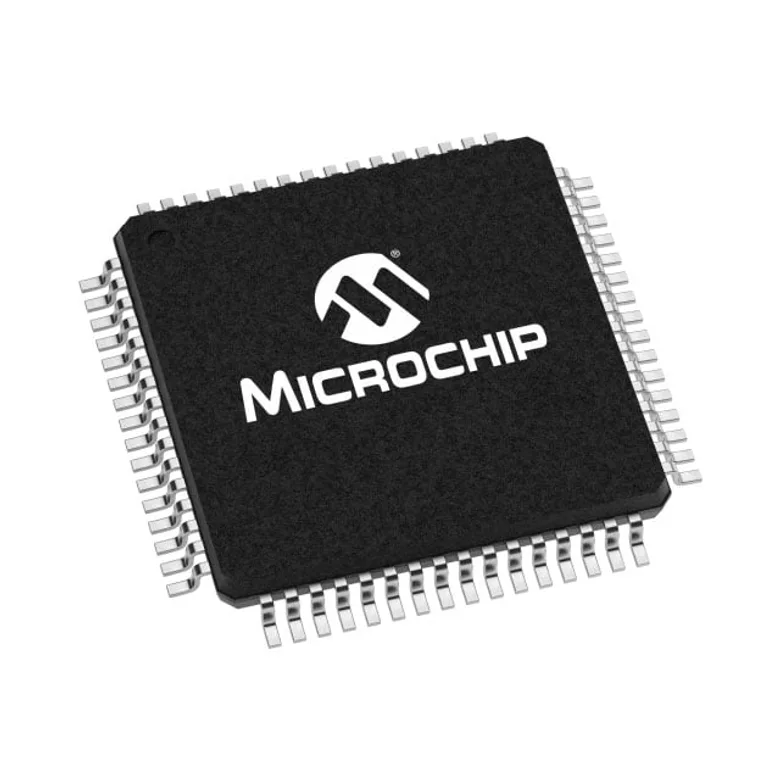

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology DSPIC33CH512MP506-E/PT
Manufacturer
Manufacturer Product Number
DSPIC33CH512MP506-E/PT
Description
IC MCU 16BIT 584KB FLASH 64TQFP
Manufacturer Standard Lead Time Contact us
Detailed Description
dsPIC dsPIC™ 33CH, Functional Safety (FuSa) Microcontroller IC 16-Bit Dual-Core 180MHz, 200MHz 584kB (584k x 8) FLASH, PRAM 64-TQFP (10x10)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Number of I/O
53
Operating Temperature
-40°C ~ 125°C (TA)
DigiKey Programmable
Not Verified
Qualification
AEC-Q100
Oscillator Type
Internal
Program Memory Type
FLASH, PRAM
EEPROM Size
-
Core Processor
dsPIC
Data Converters
A/D 34x12b; D/A 4x12b
Core Size
16-Bit Dual-Core
Mounting Type
Surface Mount
Supplier Device Package
64-TQFP (10x10)
Speed
180MHz, 200MHz
Program Memory Size
584kB (584k x 8)
RAM Size
64K x 8
Package / Case
64-TQFP
Grade
Automotive
Voltage - Supply (Vcc/Vdd)
3V ~ 3.6V
Connectivity
CANbus, I2C, IrDA, LINbus, SPI, UART/USART
Peripherals
Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, WDT
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Videos
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
DSPIC33CH512MP506-E/PT
9757711
DSPIC33CH512MP506-E/PT-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 320
Packaging Quantity Unit Price Ext Price
1 95.000 ₫ 95.000 ₫
95.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
95.000 ₫
95.000 ₫
25
86.000 ₫
2.150.000 ₫
100
78.000 ₫
7.800.000 ₫
MOQ 1 · Order multiple 1
