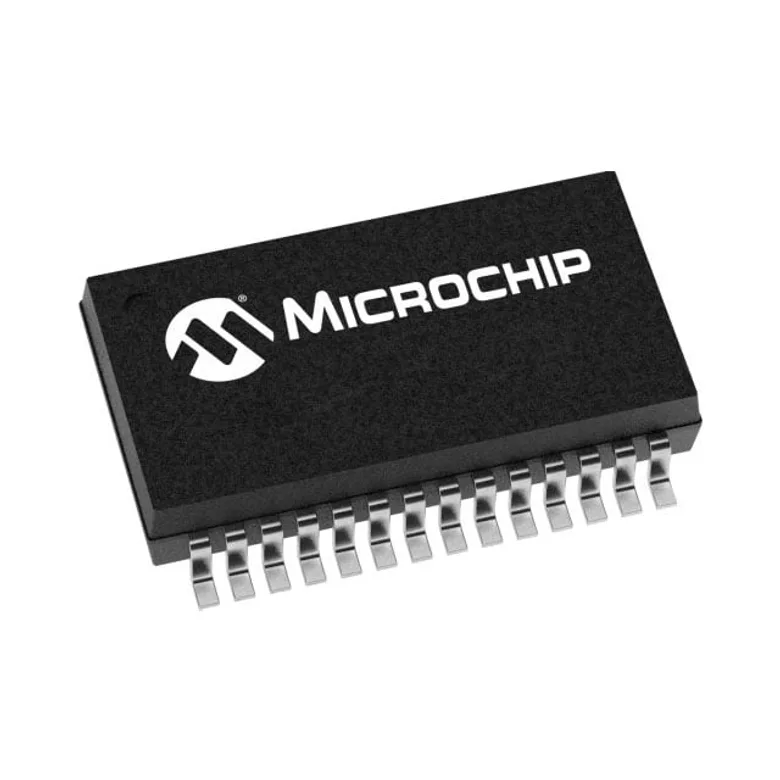

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology MCP23017T-E/SO
Manufacturer
Manufacturer Product Number
MCP23017T-E/SO
Description
IC XPNDR 1.7MHZ I2C 28SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
IC XPNDR 1.7MHZ I2C 28SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Operating Temperature
-40°C ~ 125°C
Interrupt Output
Yes
DigiKey Programmable
Not Verified
Voltage - Supply
1.8V ~ 5.5V
Output Type
Push-Pull
Features
POR
Mounting Type
Surface Mount
Clock Frequency
1.7 MHz
Supplier Device Package
28-SOIC
Interface
I2C
Number of I/O
16
Package / Case
28-SOIC (0.295", 7.50mm Width)
Current - Output Source/Sink
25mA
Documents & Media
Resource Type
Link
Datasheets
Reference Designs
Design Resources
Manuals
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
MCP23017T-E/SO
964184
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
