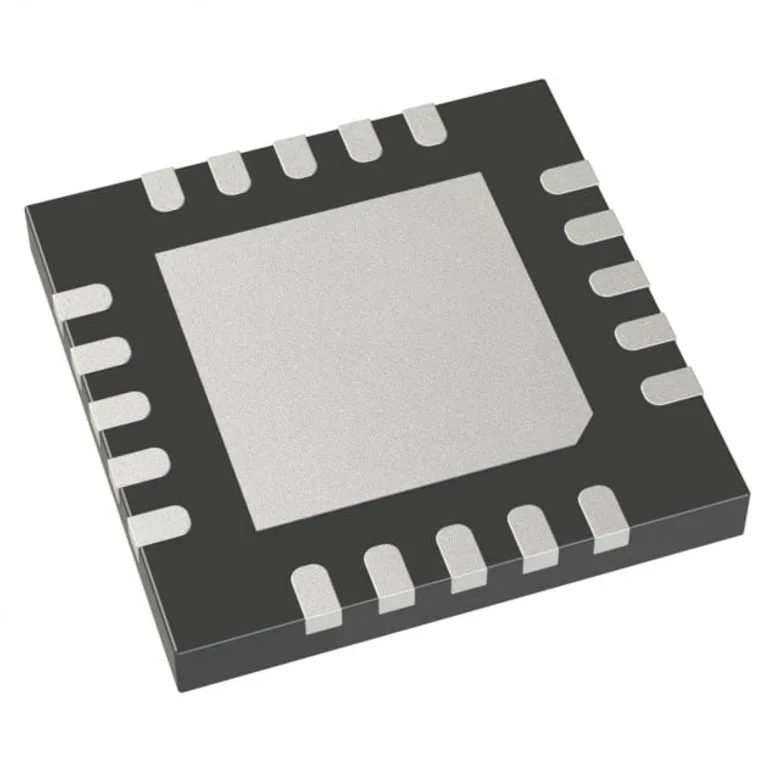

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology MCP23S08T-E/ML
Manufacturer
Manufacturer Product Number
MCP23S08T-E/ML
Description
IC XPNDR 10MHZ SPI 20QFN
Manufacturer Standard Lead Time Contact us
Detailed Description
IC XPNDR 10MHZ SPI 20QFN
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Operating Temperature
-40°C ~ 125°C
Interrupt Output
Yes
DigiKey Programmable
Not Verified
Voltage - Supply
1.8V ~ 5.5V
Output Type
Push-Pull
Features
POR
Mounting Type
Surface Mount
Clock Frequency
10 MHz
Supplier Device Package
20-QFN (4x4)
Interface
SPI
Number of I/O
8
Package / Case
20-VFQFN Exposed Pad
Current - Output Source/Sink
25mA
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Reference Designs
Design Resources
Manuals
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
MCP23S08T-E/ML
1223122
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Alternate Packaging
MCP23S08-E/ML
IC XPNDR 10MHZ SPI 20QFN
43.000Â â‚« Microchip Technology
Substitutes
MCP23S08-E/ML
IC XPNDR 10MHZ SPI 20QFN
43.000Â â‚« Microchip Technology
