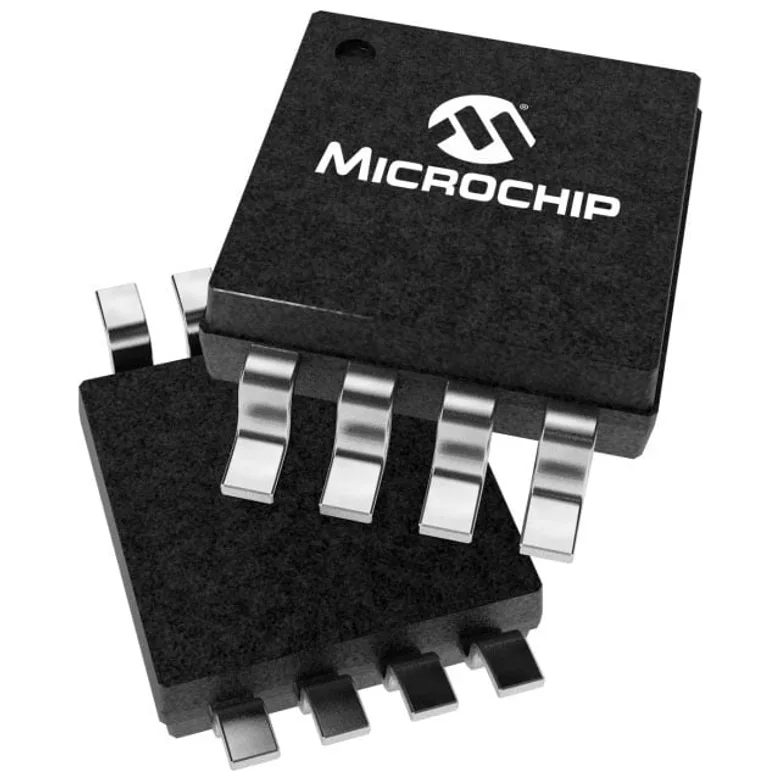

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology MCP6543-E/SN
Manufacturer
Manufacturer Product Number
MCP6543-E/SN
Description
IC COMPARATOR 1 GEN PUR 8SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
IC COMPARATOR 1 GEN PUR 8SOIC
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Operating Temperature
-40°C ~ 125°C
Output Type
CMOS, Push-Pull, Rail-to-Rail, TTL
Voltage - Supply, Single/Dual (±)
1.6V ~ 5.5V
Mounting Type
Surface Mount
Supplier Device Package
8-SOIC
Propagation Delay (Max)
8µs
Current - Quiescent (Max)
1µA
Voltage - Input Offset (Max)
7mV @ 5.5V
Current - Input Bias (Max)
1pA @ 5.5V
Current - Output (Typ)
-
CMRR, PSRR (Typ)
70dB CMRR, 80dB PSRR
Hysteresis
6.5mV
Number of Elements
1
Package / Case
8-SOIC (0.154", 3.90mm Width)
Type
Standard (General Purpose)
Documents & Media
Resource Type
Link
EDA Models
Design Resources
Manuals
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
MCP6543-E/SN
870227
MCP6543-E/SN-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 11.000 ₫ 11.000 ₫
11.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
900
11.000 ₫
9.900.000 ₫
MOQ 900 · Order multiple 900
Alternate Packaging
MCP6543T-E/SN
IC COMPARATOR 1 GEN PUR 8SOIC
14.000 ₫ Microchip Technology
MCP6543T-E/SN
IC COMPARATOR 1 GEN PUR 8SOIC
14.000 ₫ Microchip Technology
MCP6543T-E/SN
IC COMPARATOR 1 GEN PUR 8SOIC
14.000 ₫ Microchip Technology
Substitutes
MCP6543T-E/SN
IC COMPARATOR 1 GEN PUR 8SOIC
14.000 ₫ Microchip Technology
