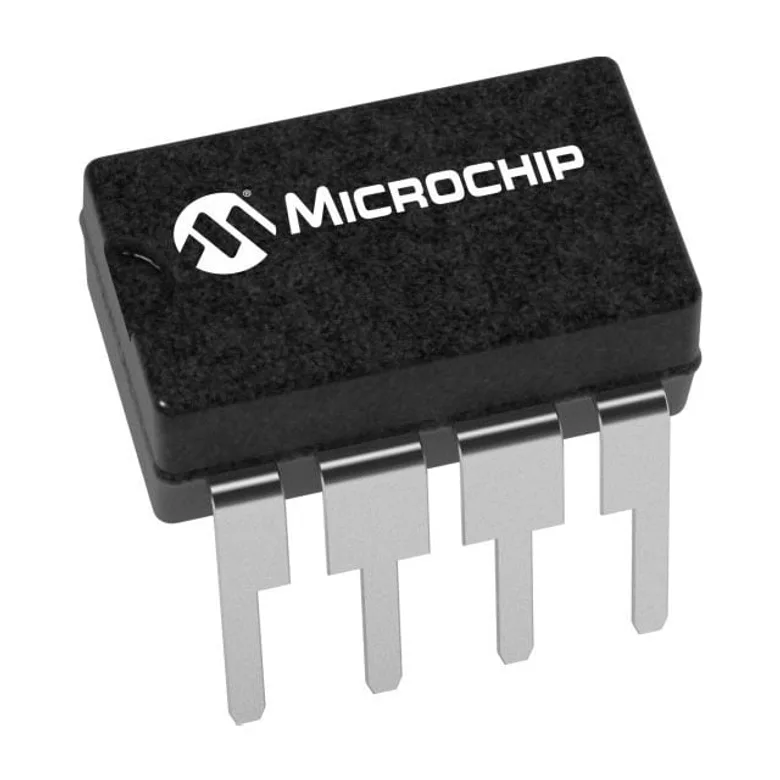

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology MCP6546-E/P
Manufacturer
Manufacturer Product Number
MCP6546-E/P
Description
IC COMPARATOR 1 GEN PUR 8DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
IC COMPARATOR 1 GEN PUR 8DIP
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Operating Temperature
-40°C ~ 125°C
Output Type
CMOS, Open-Drain, Rail-to-Rail, TTL
Voltage - Supply, Single/Dual (±)
1.6V ~ 5.5V
Mounting Type
Through Hole
Supplier Device Package
8-PDIP
Propagation Delay (Max)
8µs
Current - Quiescent (Max)
1µA
Voltage - Input Offset (Max)
7mV @ 5.5V
Current - Input Bias (Max)
1pA @ 5.5V
Current - Output (Typ)
30mA
CMRR, PSRR (Typ)
70dB CMRR, 80dB PSRR
Hysteresis
6.5mV
Number of Elements
1
Package / Case
8-DIP (0.300", 7.62mm)
Type
Standard (General Purpose)
Documents & Media
Resource Type
Link
EDA Models
Design Resources
Manuals
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
MCP6546-E/P
870218
MCP6546-E/P-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 329
Packaging Quantity Unit Price Ext Price
1 15.000 ₫ 15.000 ₫
15.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
15.000 ₫
15.000 ₫
25
12.000 ₫
300.000 ₫
100
11.000 ₫
1.100.000 ₫
MOQ 1 · Order multiple 1
Substitutes
MCP6548-E/P
IC COMPARATOR 1 GEN PUR 8DIP
12.000 ₫ Microchip Technology
