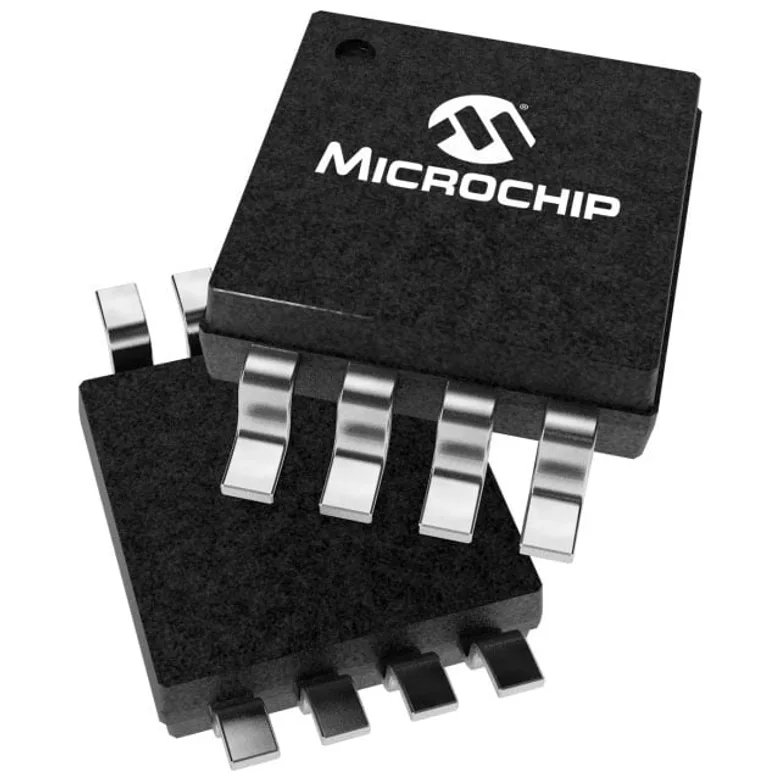

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology MCP7940NT-E/MS
Manufacturer
Manufacturer Product Number
MCP7940NT-E/MS
Description
IC RTC CLK/CALENDAR I2C 8MSOP
Manufacturer Standard Lead Time Contact us
Detailed Description
IC RTC CLK/CALENDAR I2C 8MSOP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Operating Temperature
-40°C ~ 125°C
DigiKey Programmable
Not Verified
Qualification
AEC-Q100
Voltage - Supply
1.8V ~ 5.5V
Time Format
HH:MM:SS (12/24 hr)
Date Format
YY-MM-DD-dd
Features
Alarm, Leap Year, Square Wave Output, SRAM
Mounting Type
Surface Mount
Supplier Device Package
8-MSOP
Memory Size
64B
Voltage - Supply, Battery
1.3V ~ 5.5V
Interface
I2C, 2-Wire Serial
Package / Case
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Current - Timekeeping (Max)
1.2µA @ 3.3V
Type
Clock/Calendar
Grade
Automotive
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Design Resources
Environmental Information
Product Change Notices
Featured Products
Errata
Additional Resources
Attribute
Description
Part Number Alias
MCP7940NT-E/MS
9642913
MCP7940NT-E/MSCT-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1,064
Packaging Quantity Unit Price Ext Price
1 27.000 ₫ 27.000 ₫
27.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
27.000 ₫
27.000 ₫
MOQ 1 · Order multiple 1
