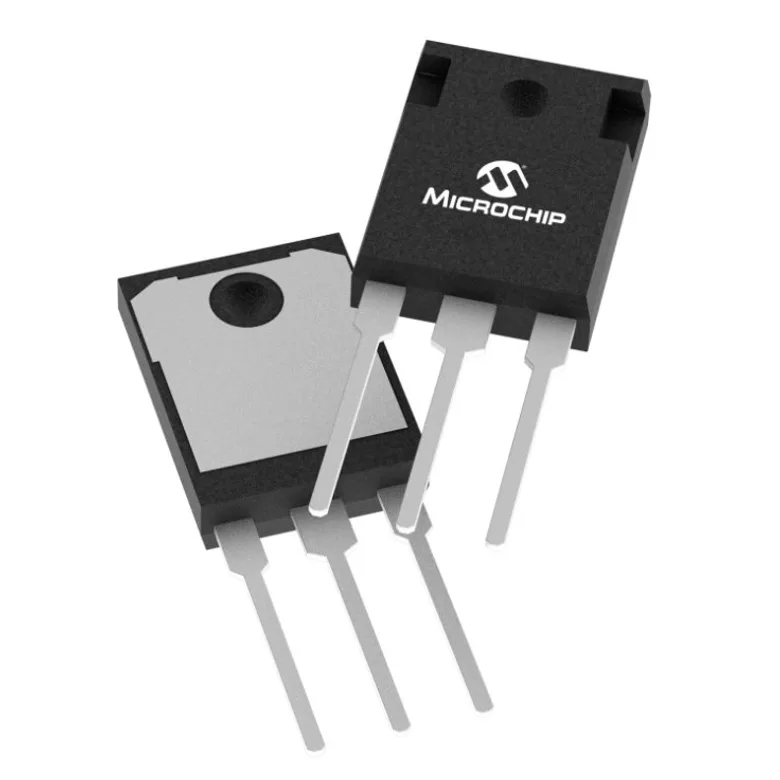

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology MSC040SMA120B
Manufacturer
Manufacturer Product Number
MSC040SMA120B
Description
SICFET N-CH 1200V 66A TO247-3
Manufacturer Standard Lead Time Contact us
Detailed Description
SICFET N-CH 1200V 66A TO247-3
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Gate Charge (Qg) (Max) @ Vgs
137 nC @ 20 V
Input Capacitance (Ciss) (Max) @ Vds
1990 pF @ 1000 V
Operating Temperature
-55°C ~ 175°C (TJ)
Power Dissipation (Max)
323W (Tc)
Qualification
-
Technology
SiCFET (Silicon Carbide)
FET Type
N-Channel
Current - Continuous Drain (Id) @ 25°C
66A (Tc)
Rds On (Max) @ Id, Vgs
50mOhm @ 40A, 20V
Vgs(th) (Max) @ Id
2.7V @ 2mA
Mounting Type
Through Hole
FET Feature
-
Supplier Device Package
TO-247-3
Package / Case
TO-247-3
Grade
-
Drive Voltage (Max Rds On, Min Rds On)
20V
Vgs (Max)
+23V, -10V
Drain to Source Voltage (Vdss)
1200 V
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
MSC040SMA120B
7804124
MSC040SMA120B-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 21
Packaging Quantity Unit Price Ext Price
1 630.000 ₫ 630.000 ₫
630.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
630.000 ₫
630.000 ₫
25
581.000 ₫
14.525.000 ₫
100
475.000 ₫
47.500.000 ₫
MOQ 1 · Order multiple 1
