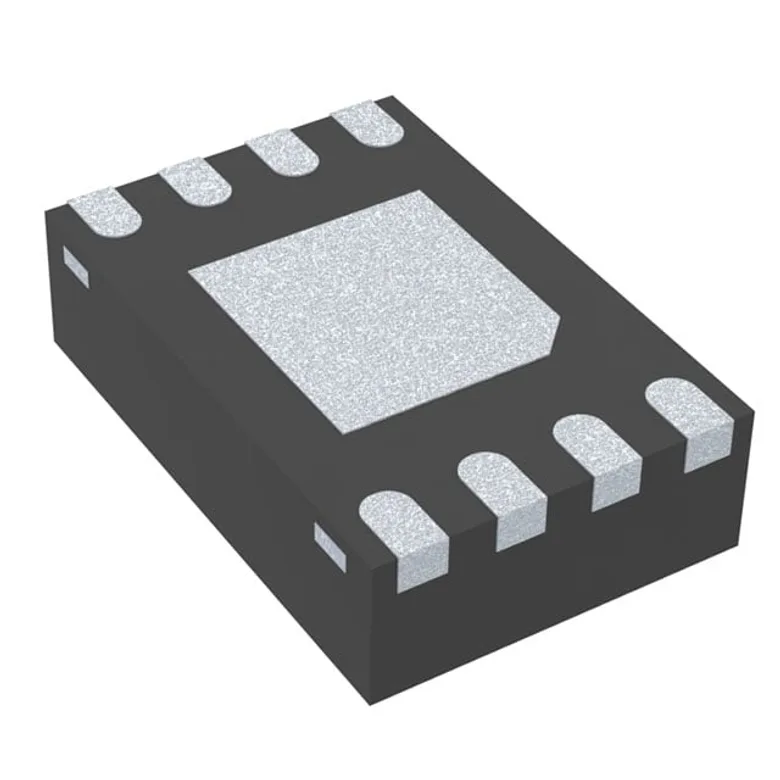

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology PIC12F508-E/MC
Manufacturer
Manufacturer Product Number
PIC12F508-E/MC
Description
IC MCU 8BIT 768B FLASH 8DFN
Manufacturer Standard Lead Time Contact us
Detailed Description
PIC PIC® 12F Microcontroller IC 8-Bit 4MHz 768B (512 x 12) FLASH 8-DFN (2x3)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Number of I/O
5
Operating Temperature
-40°C ~ 125°C (TA)
DigiKey Programmable
Not Verified
Oscillator Type
Internal
Program Memory Type
FLASH
EEPROM Size
-
Core Processor
PIC
Data Converters
-
Core Size
8-Bit
Mounting Type
Surface Mount
Supplier Device Package
8-DFN (2x3)
Speed
4MHz
Program Memory Size
768B (512 x 12)
RAM Size
25 x 8
Package / Case
8-VFDFN Exposed Pad
Voltage - Supply (Vcc/Vdd)
2V ~ 5.5V
Connectivity
-
Peripherals
POR, WDT
Documents & Media
Resource Type
Link
EDA Models
Design Resources
Related Documents
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
PIC12F508-E/MC
1947991
PIC12F508-E/MC-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 28.000 ₫ 28.000 ₫
28.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
750
28.000 ₫
21.000.000 ₫
MOQ 750 · Order multiple 750
