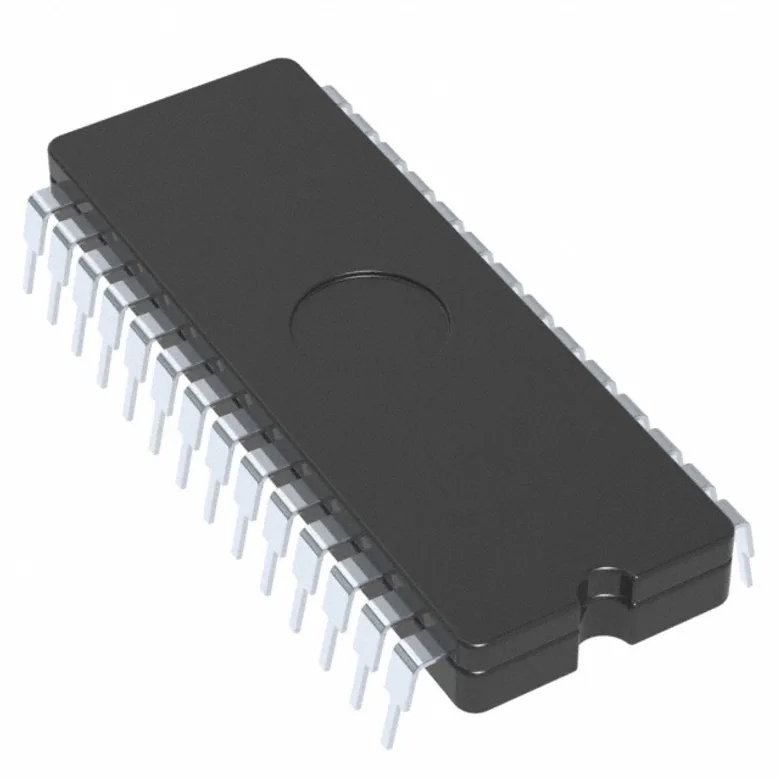

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology PIC16C57-HS/P
Manufacturer
Manufacturer Product Number
PIC16C57-HS/P
Description
IC MCU 8BIT 3KB OTP 28DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
PIC PIC® 16C Microcontroller IC 8-Bit 20MHz 3KB (2K x 12) OTP 28-PDIP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Number of I/O
20
Operating Temperature
0°C ~ 70°C (TA)
DigiKey Programmable
Verified
Oscillator Type
External
Program Memory Type
OTP
EEPROM Size
-
Core Processor
PIC
Data Converters
-
Core Size
8-Bit
Mounting Type
Through Hole
Supplier Device Package
28-PDIP
Speed
20MHz
Program Memory Size
3KB (2K x 12)
RAM Size
72 x 8
Package / Case
28-DIP (0.600", 15.24mm)
Voltage - Supply (Vcc/Vdd)
4.5V ~ 5.5V
Connectivity
-
Peripherals
POR, WDT
Documents & Media
Resource Type
Link
Datasheets
Design Resources
Related Documents
Training Modules
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
PIC16C57-HS/P
107405
PIC16C57-HS/P-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 105
Packaging Quantity Unit Price Ext Price
1 193.000 ₫ 193.000 ₫
193.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
193.000 ₫
193.000 ₫
25
187.000 ₫
4.675.000 ₫
100
179.000 ₫
17.900.000 ₫
MOQ 1 · Order multiple 1
