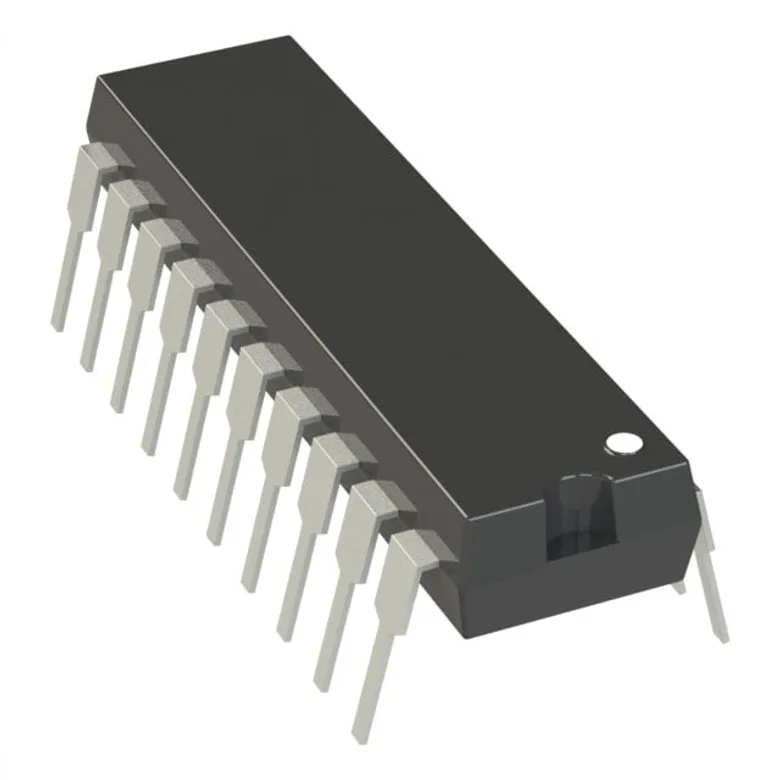

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology PIC16F13145-E/P
Manufacturer
Manufacturer Product Number
PIC16F13145-E/P
Description
IC MCU 8BIT 14KB FLASH 20DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
PIC PIC® 16F Microcontroller IC 8-Bit 32MHz 14KB (14K x 8) FLASH 20-PDIP
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Number of I/O
17
Operating Temperature
-40°C ~ 125°C (TA)
Oscillator Type
Internal
Program Memory Type
FLASH
EEPROM Size
-
Core Processor
PIC
Data Converters
A/D 22x10b SAR; D/A 1x8b
Core Size
8-Bit
Mounting Type
Through Hole
Supplier Device Package
20-PDIP
Speed
32MHz
Program Memory Size
14KB (14K x 8)
RAM Size
1K x 8
Package / Case
20-DIP (0.300", 7.62mm)
Voltage - Supply (Vcc/Vdd)
1.8V ~ 5.5V
Connectivity
I2C, LINbus, SPI, UART/USART
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
PIC16F13145-E/P
22194540
150-PIC16F13145-E/P-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 305
Packaging Quantity Unit Price Ext Price
1 51.000 ₫ 51.000 ₫
51.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
51.000 ₫
51.000 ₫
25
47.000 ₫
1.175.000 ₫
100
43.000 ₫
4.300.000 ₫
MOQ 1 · Order multiple 1
