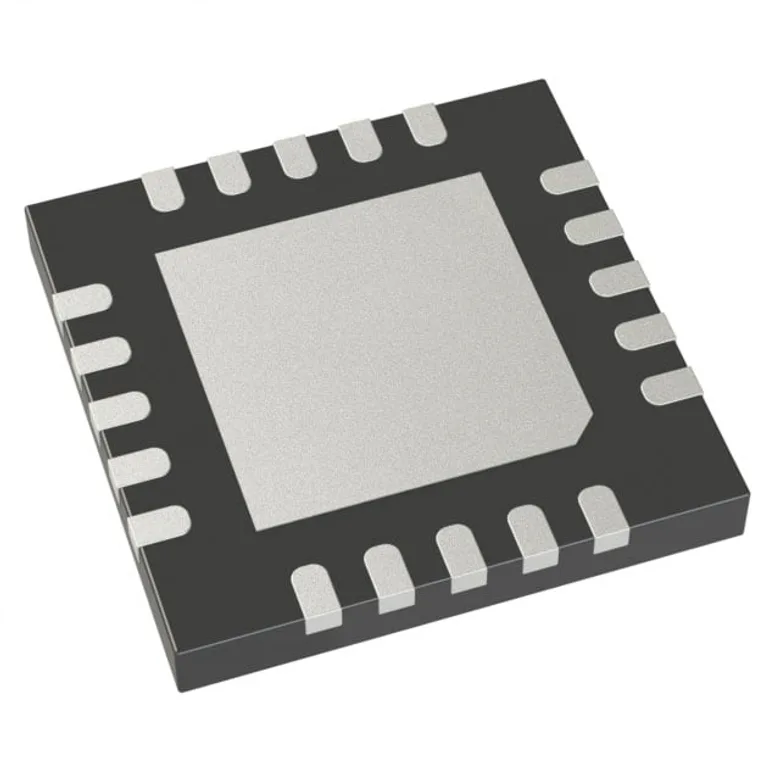

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology PIC16F687-E/ML
Manufacturer
Manufacturer Product Number
PIC16F687-E/ML
Description
IC MCU 8BIT 3.5KB FLASH 20QFN
Manufacturer Standard Lead Time Contact us
Detailed Description
PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 3.5KB (2K x 14) FLASH 20-QFN (4x4)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Number of I/O
18
Operating Temperature
-40°C ~ 125°C (TA)
DigiKey Programmable
Verified
Oscillator Type
Internal
Program Memory Type
FLASH
EEPROM Size
256 x 8
Core Processor
PIC
Data Converters
A/D 12x10b
Core Size
8-Bit
Mounting Type
Surface Mount
Supplier Device Package
20-QFN (4x4)
Speed
20MHz
Program Memory Size
3.5KB (2K x 14)
RAM Size
128 x 8
Package / Case
20-VFQFN Exposed Pad
Voltage - Supply (Vcc/Vdd)
2V ~ 5.5V
Connectivity
I2C, SPI, UART/USART
Peripherals
Brown-out Detect/Reset, POR, WDT
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Design Resources
Related Documents
Training Modules
Environmental Information
Product Change Notices
Featured Products
Errata
Additional Resources
Attribute
Description
Part Number Alias
PIC16F687-E/ML
1098662
PIC16F687-E/ML-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 83.000 ₫ 83.000 ₫
83.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
273
83.000 ₫
22.659.000 ₫
MOQ 273 · Order multiple 273
