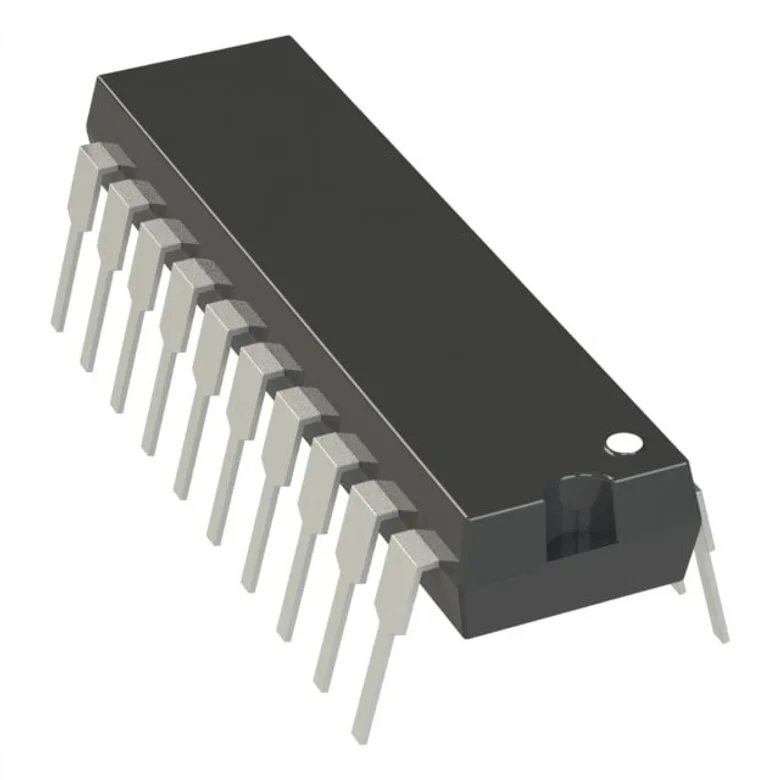

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology PIC16F689-E/P
Manufacturer
Manufacturer Product Number
PIC16F689-E/P
Description
IC MCU 8BIT 7KB FLASH 20DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 7KB (4K x 14) FLASH 20-PDIP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Number of I/O
18
Operating Temperature
-40°C ~ 125°C (TA)
DigiKey Programmable
Verified
Oscillator Type
Internal
Program Memory Type
FLASH
EEPROM Size
256 x 8
Core Processor
PIC
Data Converters
A/D 12x10b
Core Size
8-Bit
Mounting Type
Through Hole
Supplier Device Package
20-PDIP
Speed
20MHz
Program Memory Size
7KB (4K x 14)
RAM Size
256 x 8
Package / Case
20-DIP (0.300", 7.62mm)
Voltage - Supply (Vcc/Vdd)
2V ~ 5.5V
Connectivity
I2C, SPI, UART/USART
Peripherals
Brown-out Detect/Reset, POR, WDT
