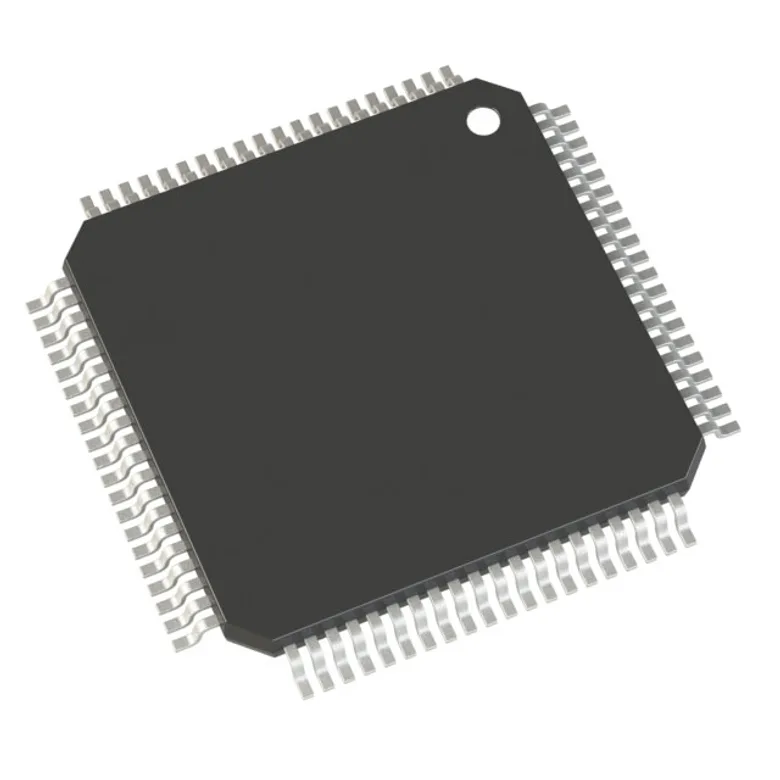

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology PIC18F8520-E/PT
Manufacturer
Manufacturer Product Number
PIC18F8520-E/PT
Description
IC MCU 8BIT 32KB FLASH 80TQFP
Manufacturer Standard Lead Time Contact us
Detailed Description
IC MCU 8BIT 32KB FLASH 80TQFP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Number of I/O
68
Operating Temperature
-40°C ~ 125°C (TA)
DigiKey Programmable
Verified
Oscillator Type
Internal
Program Memory Type
FLASH
EEPROM Size
1K x 8
Core Processor
PIC
Data Converters
A/D 16x10b
Core Size
8-Bit
Mounting Type
Surface Mount
Supplier Device Package
80-TQFP (12x12)
Speed
25MHz
Program Memory Size
32KB (16K x 16)
RAM Size
2K x 8
Package / Case
80-TQFP
Voltage - Supply (Vcc/Vdd)
4.2V ~ 5.5V
Connectivity
EBI/EMI, I2C, SPI, UART/USART
Peripherals
Brown-out Detect/Reset, LVD, POR, PWM, WDT
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Design Resources
Training Modules
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
PIC18F8520-E/PT
572872
PIC18F8520-E/PT-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 23
Packaging Quantity Unit Price Ext Price
1 298.000 ₫ 298.000 ₫
298.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
298.000 ₫
298.000 ₫
MOQ 1 · Order multiple 1
Alternate Packaging
PIC18F8520T-E/PT
IC MCU 8BIT 32KB FLASH 80TQFP
184.000 ₫ Microchip Technology
For Use With
MIKROE-995
EASYPIC PRO V7 PIC18F87K22 EVAL
6.207.000 ₫ MikroElektronika
