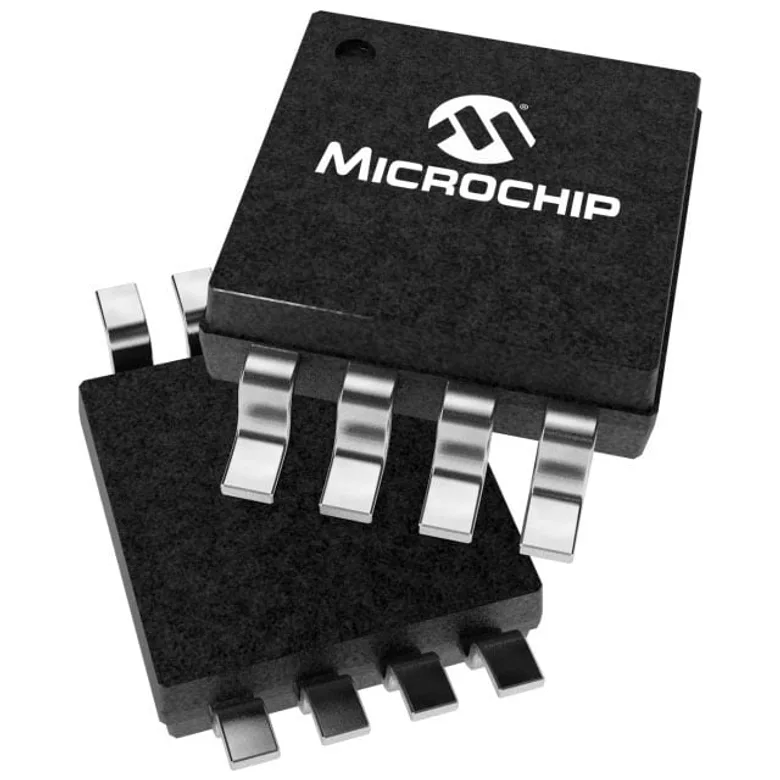

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology TC4428COA713
Manufacturer
Manufacturer Product Number
TC4428COA713
Description
IC GATE DRVR LOW-SIDE 8SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
IC GATE DRVR LOW-SIDE 8SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Operating Temperature
0°C ~ 70°C (TA)
DigiKey Programmable
Not Verified
Voltage - Supply
4.5V ~ 18V
Input Type
Inverting, Non-Inverting
Mounting Type
Surface Mount
Supplier Device Package
8-SOIC
Package / Case
8-SOIC (0.154", 3.90mm Width)
Rise / Fall Time (Typ)
25ns, 25ns
Channel Type
Independent
Driven Configuration
Low-Side
Number of Drivers
2
Gate Type
MOSFET (N-Channel, P-Channel)
Logic Voltage - VIL, VIH
0.8V, 2.4V
Current - Peak Output (Source, Sink)
1.5A, 1.5A
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Design Resources
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
TC4428COA713
443354
TC4428COA713TR-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 32.000 ₫ 32.000 ₫
32.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
3,300
32.000 ₫
105.600.000 ₫
MOQ 3,300 · Order multiple 3,300
Alternate Packaging
TC4428COA
IC GATE DRVR LOW-SIDE 8SOIC
43.000 ₫ Microchip Technology
Substitutes
TC4428ACOA713
IC GATE DRVR LOW-SIDE 8SOIC
32.000 ₫ Microchip Technology
MIC4428ZM-TR
IC GATE DRVR LOW-SIDE 8SOIC
26.000 ₫ Microchip Technology
MIC4428YM
IC GATE DRVR LOW-SIDE 8SOIC
35.000 ₫ Microchip Technology
MIC4425YM
IC GATE DRVR LOW-SIDE 8SOIC
54.000 ₫ Microchip Technology
TC4428COA
IC GATE DRVR LOW-SIDE 8SOIC
43.000 ₫ Microchip Technology
MIC4428ZM
IC GATE DRVR LOW-SIDE 8SOIC
35.000 ₫ Microchip Technology
MIC4428CM
IC GATE DRVR LOW-SIDE 8SOIC
21.000 ₫ Microchip Technology
MIC4428CM-TR
IC GATE DRVR LOW-SIDE 8SOIC
19.000 ₫ Microchip Technology
