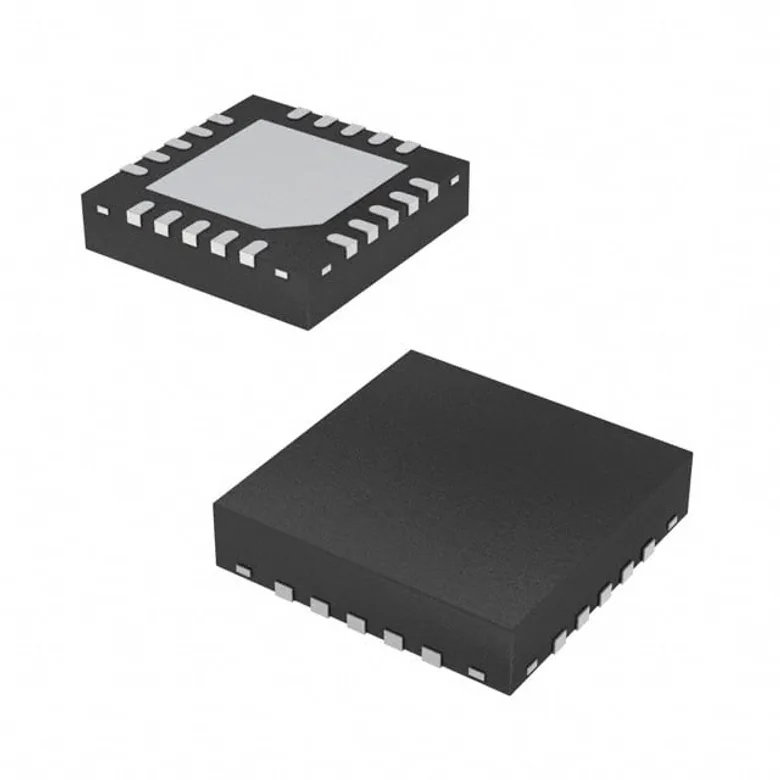

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology ZL40264LDF1
Manufacturer
Manufacturer Product Number
ZL40264LDF1
Description
IC DISTRIBUTION PCIE 20-VFQFN
Manufacturer Standard Lead Time Contact us
Detailed Description
PCI Express (PCIe) Fanout Buffer (Distribution) IC 400MHz 1 Output 20-QFN (4x4)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Operating Temperature
-40°C ~ 85°C (TA)
Voltage - Supply
2.375V ~ 2.625V, 3.135V ~ 3.465V
Mounting Type
Surface Mount
Output
LP-HCSL
Ratio - Input:Output
1:4
Differential - Input:Output
Yes/Yes
Supplier Device Package
20-QFN (4x4)
Main Purpose
PCI Express (PCIe)
Frequency - Max
400MHz
Package / Case
20-VFQFN Exposed Pad
Input
Differential or Single-Ended
Number of Circuits
1
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
ZL40264LDF1
12081998
150-ZL40264LDF1CT-ND
150-ZL40264LDF1DKR-ND
150-ZL40264LDF1TR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 7,833
Packaging Quantity Unit Price Ext Price
1 129.000 ₫ 129.000 ₫
129.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
129.000 ₫
129.000 ₫
25
127.000 ₫
3.175.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
129.000 ₫
129.000 ₫
25
127.000 ₫
3.175.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
4,000
104.000 ₫
416.000.000 ₫
MOQ 4,000 · Order multiple 4,000
