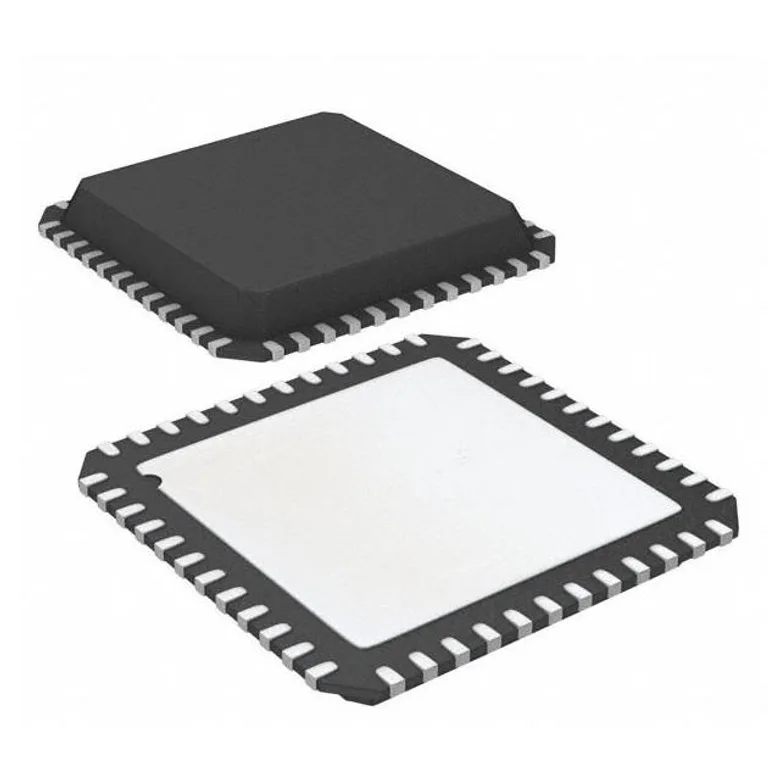

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology ZL40268LDG1
Manufacturer
Manufacturer Product Number
ZL40268LDG1
Description
IC DISTRIBUTION PCIE 48-VFQFN
Manufacturer Standard Lead Time Contact us
Detailed Description
PCI Express (PCIe) Fanout Buffer (Distribution) IC 1.5GHz 1 Output 48-QFN (7x7)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Operating Temperature
-40°C ~ 85°C (TA)
Voltage - Supply
2.375V ~ 2.625V, 3.135V ~ 3.465V
Mounting Type
Surface Mount, Wettable Flank
Output
CML, LP-HCSL, LVCMOS, LVDS, LVPECL, SSTL
Ratio - Input:Output
2:8
Differential - Input:Output
Yes/Yes
Supplier Device Package
48-QFN (7x7)
Main Purpose
PCI Express (PCIe)
Frequency - Max
1.5GHz
Package / Case
48-VFQFN Exposed Pad
Input
CML, HCSL, LVCMOS, LVDS, LVPECL, SSTL
Number of Circuits
1
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
ZL40268LDG1
13691134
150-ZL40268LDG1-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 48
Packaging Quantity Unit Price Ext Price
1 96.000 ₫ 96.000 ₫
96.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
96.000 ₫
96.000 ₫
25
80.000 ₫
2.000.000 ₫
100
77.000 ₫
7.700.000 ₫
MOQ 1 · Order multiple 1
