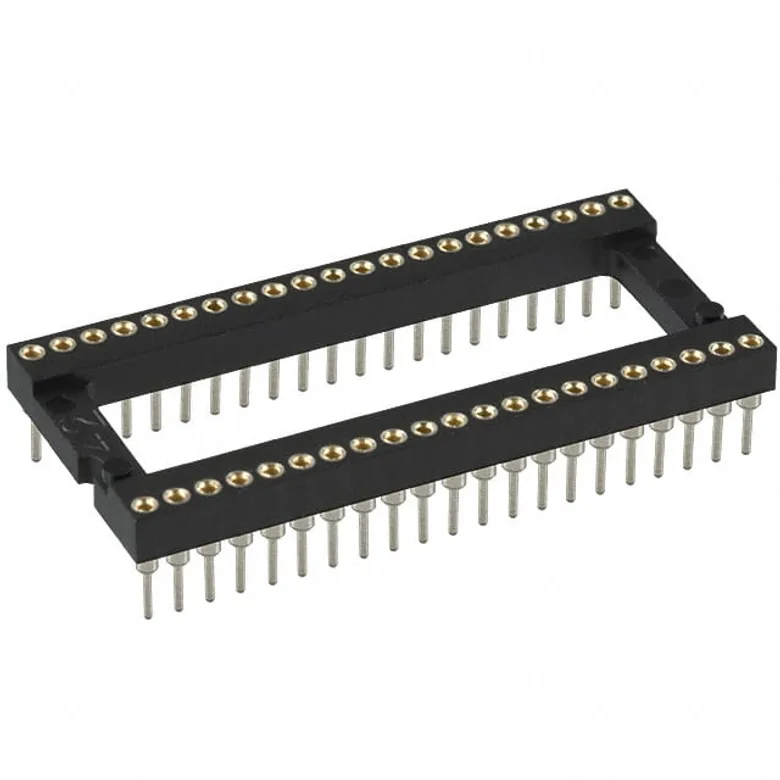

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Mill-Max Manufacturing Corp. 117-93-642-41-005000
Manufacturer
Manufacturer Product Number
117-93-642-41-005000
Description
CONN IC DIP SOCKET 42POS GOLD
Manufacturer Standard Lead Time Contact us
Detailed Description
CONN IC DIP SOCKET 42POS GOLD
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Mill-Max Manufacturing Corp.
Operating Temperature
-55°C ~ 125°C
Features
Open Frame
Number of Positions or Pins (Grid)
42 (2 x 21)
Termination
Solder
Mounting Type
Through Hole
Material Flammability Rating
UL94 V-0
Housing Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Pitch - Mating
0.070" (1.78mm)
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Material - Mating
Beryllium Copper
Pitch - Post
0.070" (1.78mm)
Contact Finish - Post
Tin-Lead
Contact Finish Thickness - Post
200.0µin (5.08µm)
Contact Material - Post
Brass Alloy
Termination Post Length
0.125" (3.18mm)
Contact Resistance
-
Type
DIP, 0.6" (15.24mm) Row Spacing
Current Rating (Amps)
3 A
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
117-93-642-41-005000
99805
ED22426-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 59
Packaging Quantity Unit Price Ext Price
1 261.000 ₫ 261.000 ₫
261.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
261.000 ₫
261.000 ₫
13
218.000 ₫
2.834.000 ₫
26
207.000 ₫
5.382.000 ₫
52
197.000 ₫
10.244.000 ₫
104
188.000 ₫
19.552.000 ₫
260
178.000 ₫
46.280.000 ₫
MOQ 1 · Order multiple 1
Mating Products
162-40-642-00-180000
CONN HDR DIP POST 42POS TIN
450.000 ₫ Mill-Max Manufacturing Corp.
Substitutes
117-43-642-41-005000
CONN IC DIP SOCKET 42POS GOLD
261.000 ₫ Mill-Max Manufacturing Corp.
