Image shown is representative only. Exact specifications should be obtained from the product datasheet.

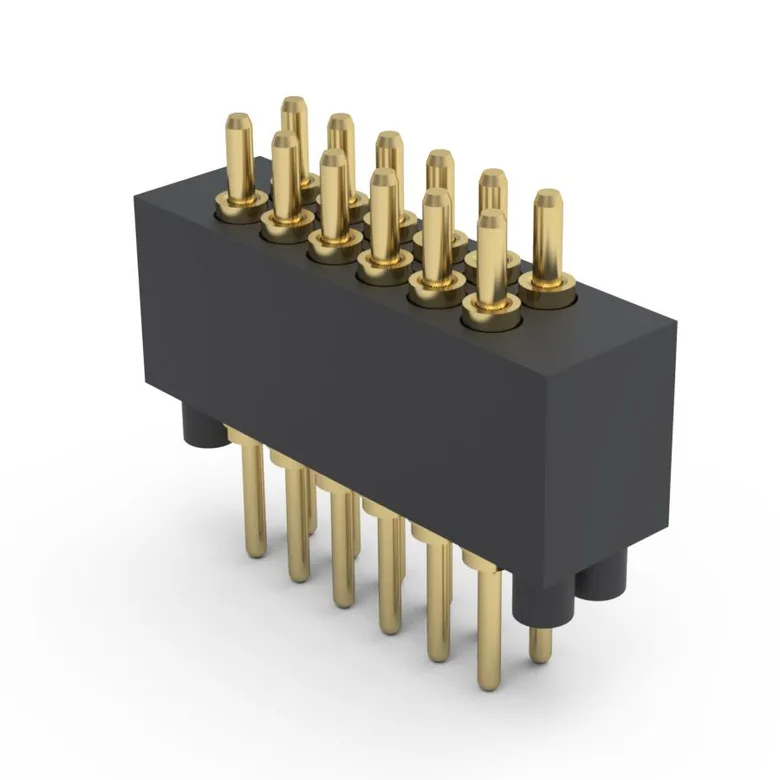

Mill-Max Manufacturing Corp. 855-22-012-10-041101
Manufacturer
Manufacturer Product Number
855-22-012-10-041101
Description
.050" PITCH SPRING-LOADED CONNEC
Manufacturer Standard Lead Time Contact us
Detailed Description
12 Position Spring Piston Connector Through Hole
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Mill-Max Manufacturing Corp.
Connector Type
Piston
Contact Finish
Gold
Row Spacing
0.050" (1.27mm)
Mounting Type
Through Hole
Material
Brass Alloy
Contact Finish Thickness
20.0µin (0.51µm)
Pitch
0.050" (1.27mm)
Number of Contacts
12
Number of Rows
2
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
855-22-012-10-041101
24634758
54-855-22-012-10-041101-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 82
Packaging Quantity Unit Price Ext Price
1 307.000 ₫ 307.000 ₫
307.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
307.000 ₫
307.000 ₫
10
261.000 ₫
2.610.000 ₫
49
233.000 ₫
11.417.000 ₫
98
222.000 ₫
21.756.000 ₫
147
216.000 ₫
31.752.000 ₫
294
206.000 ₫
60.564.000 ₫
539
197.000 ₫
106.183.000 ₫
1,029
188.000 ₫
193.452.000 ₫
MOQ 1 · Order multiple 1
