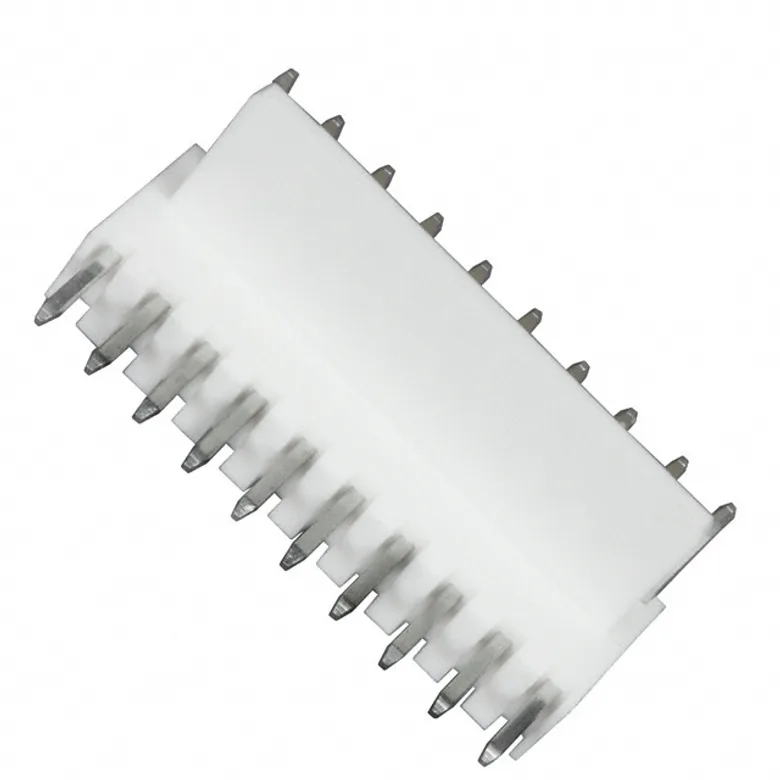

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Molex 0022051102
Manufacturer
Manufacturer Product Number
0022051102
Description
CONN HEADER R/A 10POS 2.5MM
Manufacturer Standard Lead Time 2 Days
Detailed Description
CONN HEADER R/A 10POS 2.5MM
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Molex
Operating Temperature
-
Connector Type
Header
Applications
-
Features
-
Contact Type
Male Pin
Fastening Type
Friction Lock
Number of Positions Loaded
All
Termination
Solder
Voltage Rating
-
Current Rating (Amps)
-
Mounting Type
Through Hole, Right Angle
Ingress Protection
-
Mated Stacking Heights
-
Number of Positions
10
Number of Rows
1
Material Flammability Rating
UL94 V-0
Style
Board to Cable/Wire
Insulation Color
Natural
Pitch - Mating
0.098" (2.50mm)
Contact Finish - Mating
Tin
Contact Finish Thickness - Mating
200.0µin (5.08µm)
Contact Finish - Post
Tin
Contact Finish Thickness - Post
-
Contact Material
Brass
Contact Shape
Square
Contact Length - Post
0.134" (3.40mm)
Insulation Height
0.248" (6.30mm)
Shrouding
Shrouded - 1 Wall
Overall Contact Length
-
Insulation Material
Polyamide (PA), Nylon
Row Spacing - Mating
-
Contact Length - Mating
0.295" (7.49mm)
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
0022051102
403336
2266-22051102-23-ND
23-0022051102-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 5,643
Packaging Quantity Unit Price Ext Price
1 10.000Â â‚« 10.000Â â‚«
10.000Â â‚«
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
200
10.000Â â‚«
2.000.000Â â‚«
1,000
10.000Â â‚«
10.000.000Â â‚«
2,200
9.000Â â‚«
19.800.000Â â‚«
MOQ 200 · Order multiple 200
Bulk · Digikey
Quantity Unit Price Ext Price
1
65.000Â â‚«
65.000Â â‚«
10
56.000Â â‚«
560.000Â â‚«
100
47.000Â â‚«
4.700.000Â â‚«
500
42.000Â â‚«
21.000.000Â â‚«
1,000
40.000Â â‚«
40.000.000Â â‚«
5,000
36.000Â â‚«
180.000.000Â â‚«
MOQ 1 · Order multiple 1
