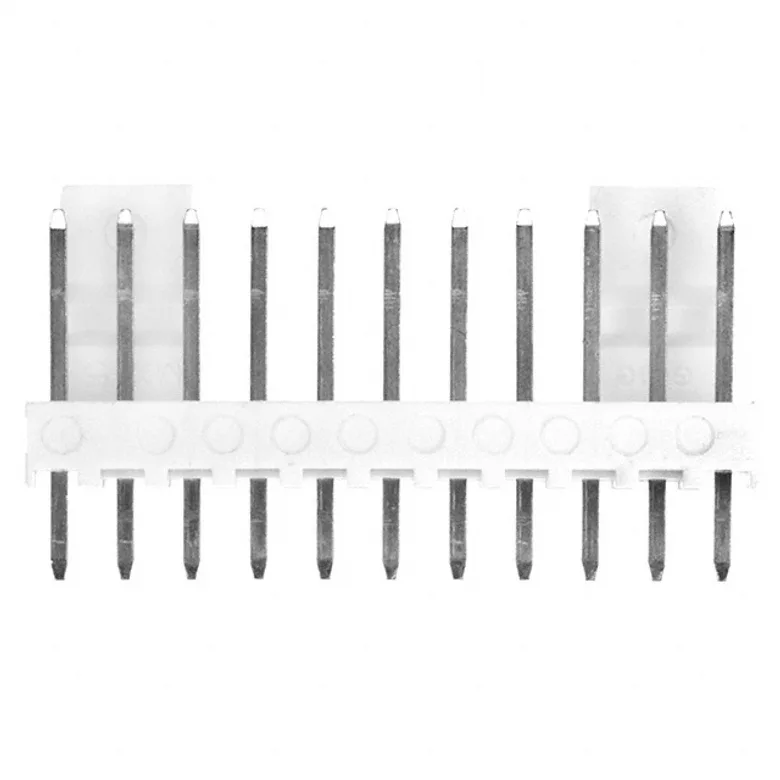

Molex 0022272111
Manufacturer
Manufacturer Product Number
0022272111
Description
CONN HEADER VERT 11POS 2.54MM
Manufacturer Standard Lead Time Contact us
Detailed Description
Connector Header Through Hole 11 position 0.100" (2.54mm)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Molex
Operating Temperature
-
Connector Type
Header
Applications
Automotive, General Purpose, Medical, Telecommunications
Features
-
Contact Type
Male Pin
Fastening Type
Friction Lock
Number of Positions Loaded
All
Termination
Solder
Voltage Rating
-
Current Rating (Amps)
-
Mounting Type
Through Hole
Ingress Protection
-
Mated Stacking Heights
-
Number of Positions
11
Number of Rows
1
Material Flammability Rating
UL94 V-0
Style
Board to Cable/Wire
Insulation Color
Natural
Pitch - Mating
0.100" (2.54mm)
Contact Finish - Mating
Tin
Contact Finish Thickness - Mating
100.0µin (2.54µm)
Contact Finish - Post
Tin
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Material
Brass
Contact Shape
Square
Contact Length - Post
0.140" (3.56mm)
Insulation Height
0.461" (11.70mm)
Shrouding
Shrouded - 1 Wall
Overall Contact Length
0.560" (14.22mm)
Insulation Material
Polyamide (PA), Nylon
Row Spacing - Mating
-
Contact Length - Mating
0.295" (7.49mm)
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Interactive Media
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
0022272111
1130586
23-0022272111-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 567
Packaging Quantity Unit Price Ext Price
1 24.000Â â‚« 24.000Â â‚«
24.000Â â‚«
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
24.000Â â‚«
24.000Â â‚«
10
20.000Â â‚«
200.000Â â‚«
100
17.000Â â‚«
1.700.000Â â‚«
500
16.000Â â‚«
8.000.000Â â‚«
1,000
15.000Â â‚«
15.000.000Â â‚«
5,000
13.000Â â‚«
65.000.000Â â‚«
10,000
13.000Â â‚«
130.000.000Â â‚«
MOQ 1 · Order multiple 1
