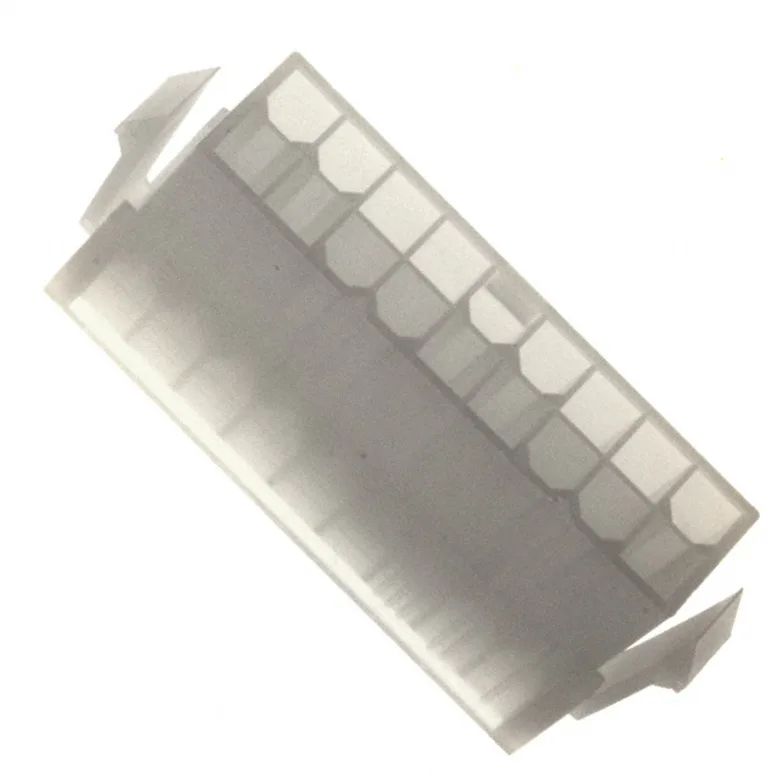

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Molex 0039012181
Manufacturer
Manufacturer Product Number
0039012181
Description
CONN PLUG HSG 18POS 4.20MM
Manufacturer Standard Lead Time Contact us
Detailed Description
CONN PLUG HSG 18POS 4.20MM
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Molex
Operating Temperature
-40°C ~ 105°C
Connector Type
Plug
Contact Termination
Crimp
Color
Natural
Features
-
Contact Type
Male Pin
Fastening Type
Locking Ramp
Row Spacing
0.165" (4.20mm)
Mounting Type
Panel Mount, Snap-In
Number of Positions
18
Pitch
0.165" (4.20mm)
Note
Contacts Sold Separately
Insulation Material
Polyamide (PA66), Nylon 6/6
Number of Rows
2
Documents & Media
Resource Type
Link
Datasheets
CAD Models
EDA Models
Drawings
Related Documents
Training Modules
Interactive Media
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
0039012181
1118555
23-0039012181-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 2,041
Packaging Quantity Unit Price Ext Price
1 53.000 ₫ 53.000 ₫
53.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
53.000 ₫
53.000 ₫
10
45.000 ₫
450.000 ₫
25
42.000 ₫
1.050.000 ₫
50
40.000 ₫
2.000.000 ₫
100
38.000 ₫
3.800.000 ₫
250
36.000 ₫
9.000.000 ₫
500
34.000 ₫
17.000.000 ₫
1,000
33.000 ₫
33.000.000 ₫
2,500
31.000 ₫
77.500.000 ₫
MOQ 1 · Order multiple 1
For Use With
0039000082
CONN PIN 16AWG CRIMP TIN
7.000 ₫ Molex
