Molex 0367921201

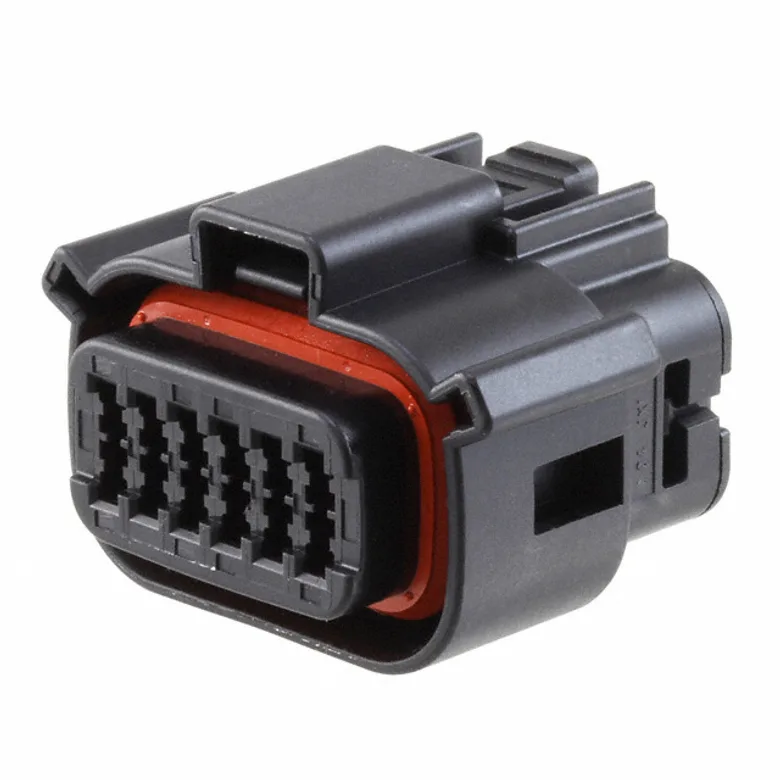

Image shown is representative only. Exact specifications should be obtained from the product datasheet.

Molex 0367921201

Manufacturer
Molex
Manufacturer Product Number
0367921201
Description

CONN RCPT HSG 12POS 3.20MM

Manufacturer Standard Lead Time Contact us
Detailed Description

CONN RCPT HSG 12POS 3.20MM

Product Attributes

Type
Description
Categories
Connectors, Interconnects
Rectangular Connectors
Rectangular Connector Housings
Manufacturer
Molex
Operating Temperature
-40°C ~ 105°C
Connector Type
Receptacle
Contact Termination
Crimp
Color
Black
Features
-
Contact Type
Female Socket
Fastening Type
Latch Holder
Row Spacing
0.233" (5.93mm)
Mounting Type
Free Hanging (In-Line)
Number of Positions
12
Pitch
0.126" (3.20mm)
Note
Contacts Sold Separately
Insulation Material
Polyamide (PA), Nylon
Number of Rows
2
View similar

Documents & Media

Resource Type
Link
Datasheets
MX120G Overview
CAD Models
0367921201 STP 0367921201.igs 0367921201.prt
Drawings
0367921201 3D Drawing 36792yyyy Drawing
Related Documents
Product Specification
Interactive Media
0367921201
Videos
Molex - Electric Commercial Vehicle Solutions (eCV) Molex - MX150 Unsealed Connection System Molex - Product Spotlight - MX123 Sealed Connection System
Product Change Notices
Tooling 19/Nov/2018
Featured Products
Commercial Vehicle Products Sealed MX120G Connectors

Additional Resources

Attribute
Description
Part Number Alias
0367921201 3661542 WM9332-ND
Availability
In Stock
Updated
5/16/2026

In-Stock: 3,303

Packaging Quantity Unit Price Ext Price
1 39.000 ₫ 39.000 ₫

39.000 ₫

All prices are shown in the selected currency

Bulk · Digikey

Quantity Unit Price Ext Price
1
39.000 ₫
39.000 ₫
10
34.000 ₫
340.000 ₫
25
32.000 ₫
800.000 ₫
50
30.000 ₫
1.500.000 ₫
100
29.000 ₫
2.900.000 ₫
250
27.000 ₫
6.750.000 ₫
900
25.000 ₫
22.500.000 ₫
1,800
23.000 ₫
41.400.000 ₫
2,700
23.000 ₫
62.100.000 ₫

MOQ 1 · Order multiple 1
