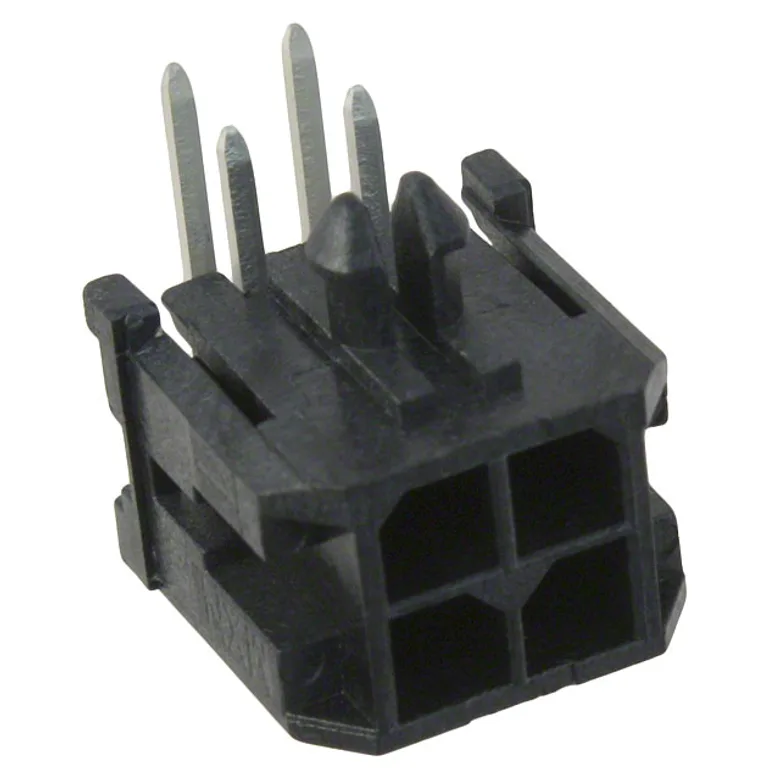

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Molex 0430450401
Manufacturer
Manufacturer Product Number
0430450401
Description
CONN HEADER R/A 4POS 3MM
Manufacturer Standard Lead Time Contact us
Detailed Description
CONN HEADER R/A 4POS 3MM
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Molex
Operating Temperature
-40°C ~ 105°C
Connector Type
Header
Applications
Automotive, General Purpose, Industrial, Medical, Telecommunications
Features
Board Lock
Contact Type
Male Pin
Fastening Type
Locking Ramp
Number of Positions Loaded
All
Termination
Solder
Voltage Rating
600V
Current Rating (Amps)
Varies by Wire Gauge
Mounting Type
Through Hole, Right Angle
Ingress Protection
-
Mated Stacking Heights
-
Number of Positions
4
Number of Rows
2
Material Flammability Rating
UL94 V-0
Style
Board to Cable/Wire
Insulation Color
Black
Pitch - Mating
0.118" (3.00mm)
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Contact Finish - Post
Tin
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Material
Brass Alloy
Contact Shape
Square
Contact Length - Post
0.125" (3.18mm)
Insulation Height
0.290" (7.37mm)
Shrouding
Shrouded - 4 Wall
Overall Contact Length
-
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating
0.118" (3.00mm)
Contact Length - Mating
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
EDA Models
Drawings
Related Documents
Product Briefs
Interactive Media
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
0430450401
2405197
WM3248-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 4,794
Packaging Quantity Unit Price Ext Price
1 43.000 ₫ 43.000 ₫
43.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
43.000 ₫
43.000 ₫
10
37.000 ₫
370.000 ₫
100
31.000 ₫
3.100.000 ₫
500
28.000 ₫
14.000.000 ₫
2,232
25.000 ₫
55.800.000 ₫
6,696
24.000 ₫
160.704.000 ₫
11,160
23.000 ₫
256.680.000 ₫
MOQ 1 · Order multiple 1
