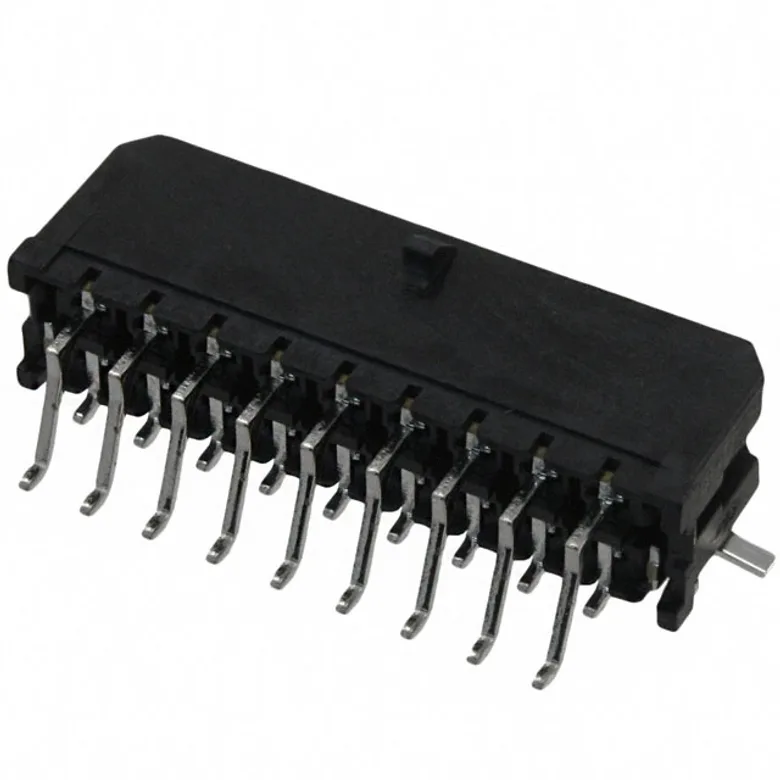

Molex 0430451809
Manufacturer
Manufacturer Product Number
0430451809
Description
CONN HEADER SMD R/A 18POS 3MM
Manufacturer Standard Lead Time Contact us
Detailed Description
CONN HEADER SMD R/A 18POS 3MM
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Molex
Operating Temperature
-40°C ~ 105°C
Connector Type
Header
Applications
Automotive, General Purpose, Industrial, Medical, Telecommunications
Features
Solder Retention
Contact Type
Male Pin
Fastening Type
Locking Ramp
Number of Positions Loaded
All
Termination
Solder
Voltage Rating
600V
Current Rating (Amps)
Varies by Wire Gauge
Mounting Type
Surface Mount, Right Angle
Ingress Protection
-
Mated Stacking Heights
-
Number of Positions
18
Number of Rows
2
Material Flammability Rating
UL94 V-0
Style
Board to Cable/Wire
Insulation Color
Black
Pitch - Mating
0.118" (3.00mm)
Contact Finish - Mating
Tin
Contact Finish Thickness - Mating
60.0µin (1.52µm)
Contact Finish - Post
Tin
Contact Finish Thickness - Post
-
Contact Material
Brass Alloy
Contact Shape
Square
Contact Length - Post
-
Insulation Height
0.290" (7.37mm)
Shrouding
Shrouded - 4 Wall
Overall Contact Length
-
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating
0.118" (3.00mm)
Contact Length - Mating
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
EDA Models
Drawings
Related Documents
Product Briefs
Interactive Media
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
0430451809
2421901
WM3798CT-ND
WM3798DKR-ND
WM3798TR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 4,433
Packaging Quantity Unit Price Ext Price
1 168.000 ₫ 168.000 ₫
168.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
168.000 ₫
168.000 ₫
10
143.000 ₫
1.430.000 ₫
100
121.000 ₫
12.100.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
168.000 ₫
168.000 ₫
10
143.000 ₫
1.430.000 ₫
100
121.000 ₫
12.100.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
200
125.000 ₫
25.000.000 ₫
400
119.000 ₫
47.600.000 ₫
600
116.000 ₫
69.600.000 ₫
1,000
112.000 ₫
112.000.000 ₫
1,400
109.000 ₫
152.600.000 ₫
2,000
107.000 ₫
214.000.000 ₫
MOQ 200 · Order multiple 200
