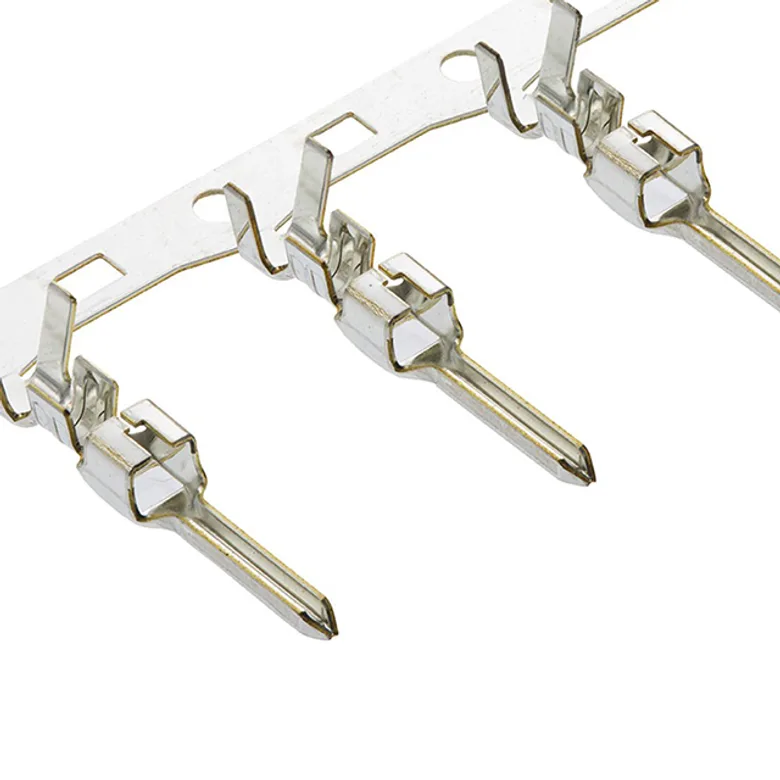

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Molex 0504199101
Manufacturer
Manufacturer Product Number
0504199101
Description
CONN PIN 18-24AWG CRIMP TIN
Manufacturer Standard Lead Time Contact us
Detailed Description
CONN PIN 18-24AWG CRIMP TIN
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Molex
Pin or Socket
Pin
Contact Finish
Tin
Contact Termination
Crimp
Wire Gauge
18-24 AWG
Contact Finish Thickness
35.4µin (0.90µm)
Type
Power
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Related Documents
Additional Resources
Attribute
Description
Part Number Alias
0504199101
9352524
0504199101-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 2.000 ₫ 2.000 ₫
2.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
15,000
2.000 ₫
30.000.000 ₫
MOQ 15,000 · Order multiple 15,000
Tooling
0638238700
TOOL HAND CRIMPER 50419 SIDE
0 ₫ Molex
0638238800
TOOL HAND CRIMPER 50419 SIDE
14.485.000 ₫ Molex
