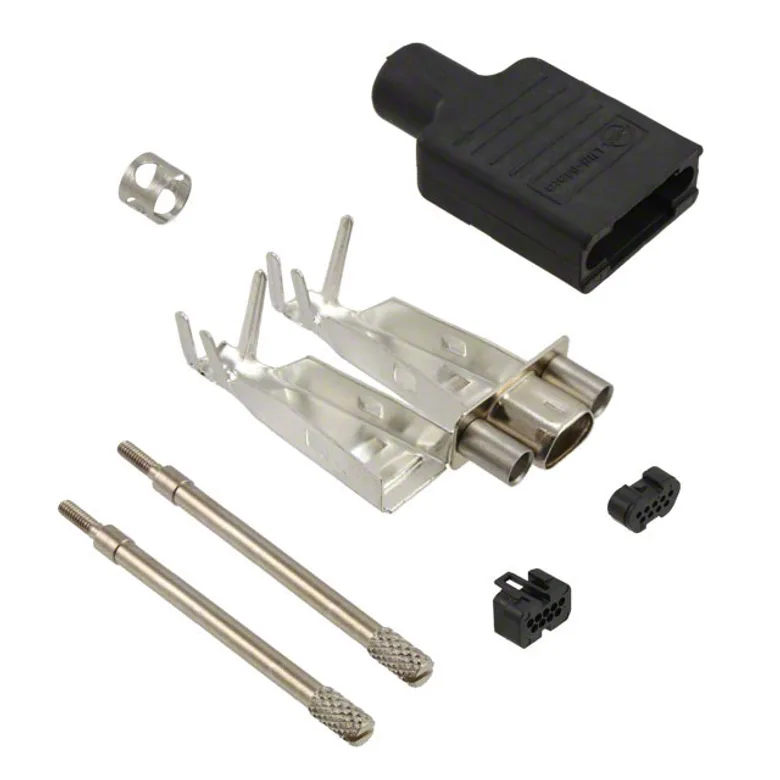

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Molex 0834219014
Manufacturer
Manufacturer Product Number
0834219014
Description
CONN MICRO-D HOUSING RCPT 9POS
Manufacturer Standard Lead Time Contact us
Detailed Description
CONN MICRO-D HOUSING RCPT 9POS
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Molex
Operating Temperature
-40°C ~ 125°C
Connector Type
Receptacle for Female Contacts
Color
-
Features
Shielded
Contact Type
Signal
Flange Feature
Cable Side, Male Jackscrew (2-56)
Mounting Type
Free Hanging (In-Line)
Ingress Protection
-
Connector Style
D-Type, Micro-D
Number of Positions
9
Dielectric Material
Liquid Crystal Polymer (LCP)
Note
Contacts Sold Separately
Shell Size, Connector Layout
0.050 Pitch x 0.050 Row to Row
Mating Cycles
500
Shell Finish Thickness
-
Shell Material, Finish
Steel, Nickel Plated
Number of Rows
2
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Related Documents
Interactive Media
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
0834219014
2405560
WM3566-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 200
Packaging Quantity Unit Price Ext Price
1 526.000 ₫ 526.000 ₫
526.000 ₫
All prices are shown in the selected currency
Bag · Digikey
Quantity Unit Price Ext Price
1
526.000 ₫
526.000 ₫
10
447.000 ₫
4.470.000 ₫
25
419.000 ₫
10.475.000 ₫
50
399.000 ₫
19.950.000 ₫
100
380.000 ₫
38.000.000 ₫
300
352.000 ₫
105.600.000 ₫
500
339.000 ₫
169.500.000 ₫
MOQ 1 · Order multiple 1
