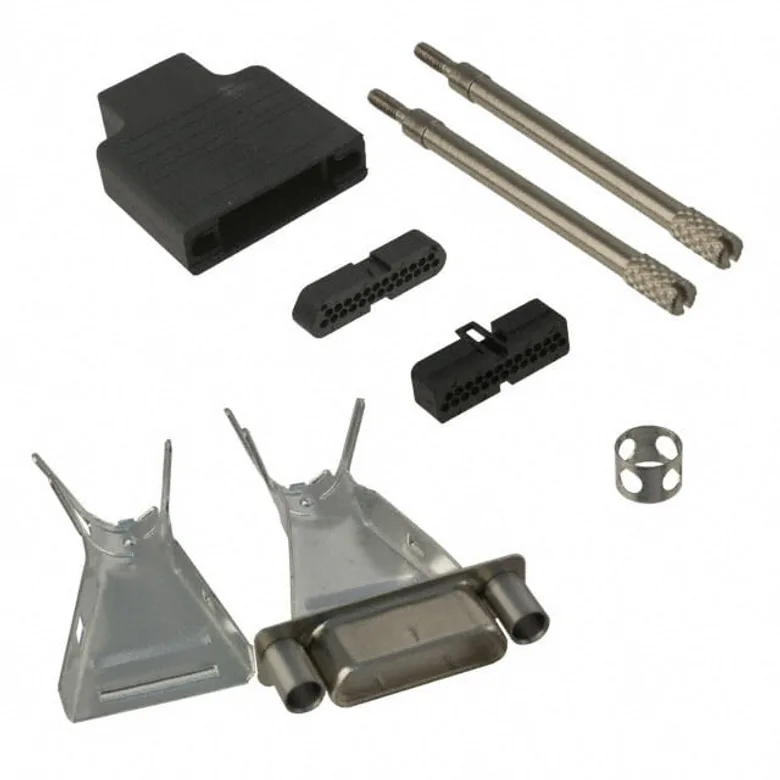

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Molex 0834249014
Manufacturer
Manufacturer Product Number
0834249014
Description
CONN MICRO-D HOUSING RCPT 25POS
Manufacturer Standard Lead Time Contact us
Detailed Description
CONN MICRO-D HOUSING RCPT 25POS
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Molex
Operating Temperature
-40°C ~ 125°C
Connector Type
Receptacle for Female Contacts
Color
-
Features
Shielded
Contact Type
Signal
Flange Feature
Cable Side, Male Jackscrew (2-56)
Mounting Type
Free Hanging (In-Line)
Ingress Protection
-
Connector Style
D-Type, Micro-D
Number of Positions
25
Dielectric Material
Liquid Crystal Polymer (LCP)
Note
Contacts Sold Separately
Shell Size, Connector Layout
0.050 Pitch x 0.050 Row to Row
Mating Cycles
500
Shell Finish Thickness
-
Shell Material, Finish
Steel, Nickel Plated
Number of Rows
2
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Interactive Media
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
0834249014
2421280
WM4349-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 48
Packaging Quantity Unit Price Ext Price
1 633.000 ₫ 633.000 ₫
633.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
633.000 ₫
633.000 ₫
10
538.000 ₫
5.380.000 ₫
25
504.000 ₫
12.600.000 ₫
50
480.000 ₫
24.000.000 ₫
100
457.000 ₫
45.700.000 ₫
300
423.000 ₫
126.900.000 ₫
500
408.000 ₫
204.000.000 ₫
MOQ 1 · Order multiple 1
