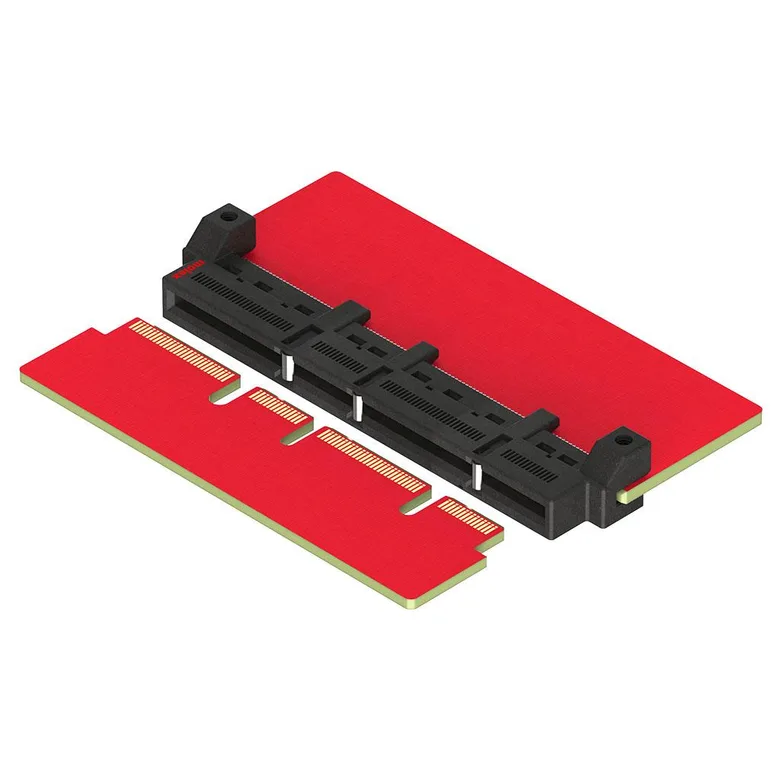

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Molex 2072628193
Manufacturer
Manufacturer Product Number
2072628193
Description
CONN EDGE DUAL FML 168POS 0.024
Manufacturer Standard Lead Time Contact us
Detailed Description
CONN EDGE DUAL FML 168POS 0.024
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Molex
Operating Temperature
-55°C ~ 85°C
Gender
Female
Contact Finish
Gold
Color
Black
Read Out
Dual
Features
-
Contact Type
-
Card Type
Non Specified - Dual Edge
Card Thickness
0.062" (1.57mm)
Flange Feature
Straddle Mount Opening, Unthreaded, 0.094" (2.40mm)
Termination
Solder
Mounting Type
Board Edge, Straddle Mount
Contact Finish Thickness
30.0µin (0.76µm)
Material - Insulation
Liquid Crystal Polymer (LCP), Glass Filled
Number of Positions
168
Pitch
0.024" (0.60mm)
Number of Positions/Bay/Row
28; 14; 28; 14
Contact Material
Copper Alloy
Number of Rows
2
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Related Documents
Additional Resources
Attribute
Description
Part Number Alias
2072628193
12681498
900-2072628193TR-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 288.000 ₫ 288.000 ₫
288.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
2,400
288.000 ₫
691.200.000 ₫
MOQ 2,400 · Order multiple 2,400
