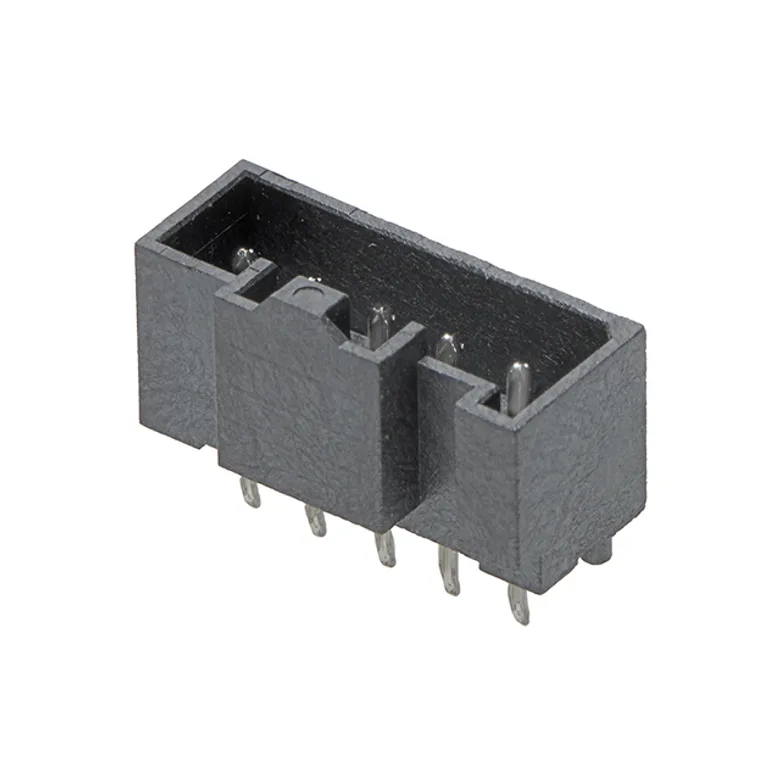

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Molex 2078430005
Manufacturer
Manufacturer Product Number
2078430005
Description
HDR ASSBY FOR L1NK 250 - 1X5 CKT
Manufacturer Standard Lead Time Contact us
Detailed Description
HDR ASSBY FOR L1NK 250 - 1X5 CKT
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Molex
Operating Temperature
-40°C ~ 105°C
Connector Type
Header
Applications
Automotive, General Purpose, Industrial, Medical, Telecommunications
Features
Board Guide
Contact Type
Male Pin
Fastening Type
Latch Holder
Number of Positions Loaded
All
Termination
Solder
Voltage Rating
250VAC/DC
Current Rating (Amps)
Varies by Wire Gauge
Mounting Type
Through Hole
Ingress Protection
-
Mated Stacking Heights
-
Number of Positions
5
Number of Rows
1
Material Flammability Rating
UL94 V-0
Style
Board to Cable/Wire
Insulation Color
Black
Pitch - Mating
0.098" (2.50mm)
Contact Finish - Mating
Tin
Contact Finish Thickness - Mating
-
Contact Finish - Post
Tin
Contact Finish Thickness - Post
-
Contact Material
Brass Alloy
Contact Shape
Square
Contact Length - Post
0.136" (3.46mm)
Insulation Height
0.264" (6.70mm)
Shrouding
Shrouded - 4 Wall
Overall Contact Length
-
Insulation Material
Liquid Crystal Polymer (LCP)
Row Spacing - Mating
-
Contact Length - Mating
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
EDA Models
Drawings
Related Documents
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
2078430005
10445986
900-2078430005-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 24.000 ₫ 24.000 ₫
24.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
24.000 ₫
24.000 ₫
10
20.000 ₫
200.000 ₫
147
17.000 ₫
2.499.000 ₫
588
15.000 ₫
8.820.000 ₫
1,029
15.000 ₫
15.435.000 ₫
5,145
13.000 ₫
66.885.000 ₫
10,143
13.000 ₫
131.859.000 ₫
MOQ 1 · Order multiple 1
