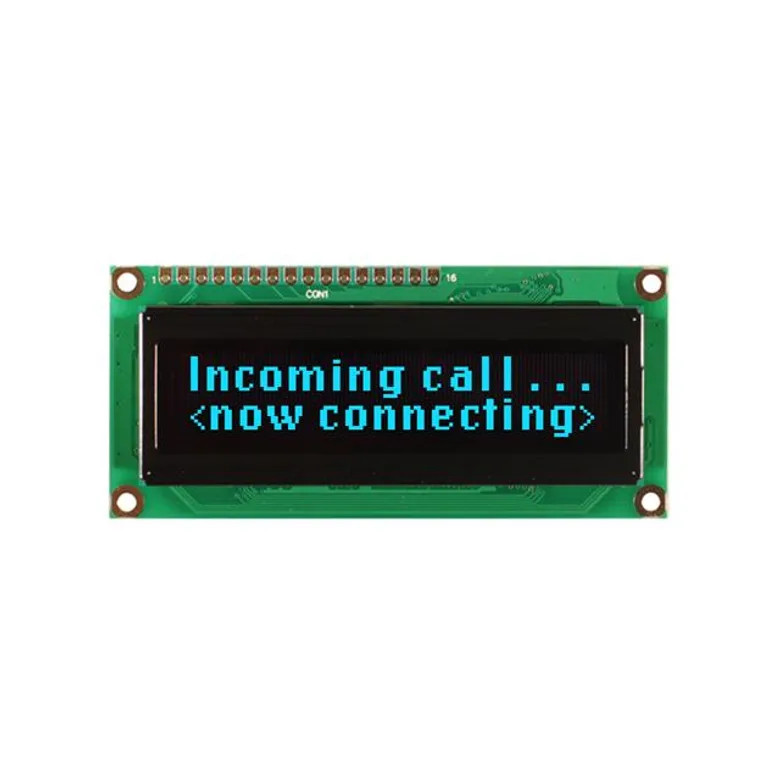

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Newhaven Display Intl NHD-0216KZW-AB5
Manufacturer
Manufacturer Product Number
NHD-0216KZW-AB5
Description
OLED MODULE 32DIG 16 X 2 PASSIVE
Manufacturer Standard Lead Time Contact us
Detailed Description
Character Display Module Passive 5 x 8 Dots OLED Without Backlight Parallel/Serial 80.00mm x 36.00mm x 10.00mm
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Newhaven Display Intl
Number of Characters
32.0
Operating Temperature
-40°C ~ 80°C
Voltage - Supply
4.8V ~ 5.3V
Viewing Area
66.00mm L x 16.00mm W
Display Type
OLED
Character Size
5.55mm H x 2.95mm W
Display Format
16 x 2
Character Format
5 x 8 Dots
Dot Size
0.55mm W x 0.65mm H
Outline L x W x H
80.00mm x 36.00mm x 10.00mm
Interface
Parallel/Serial
Text Color
Blue
Background Color
Black
Display Mode
Passive
Backlight
Without Backlight
Documents & Media
Resource Type
Link
Datasheets
Design Resources
Related Documents
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
NHD-0216KZW-AB5
2626456
NHD-0216KZW-AB5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 246
Packaging Quantity Unit Price Ext Price
1 816.000 ₫ 816.000 ₫
816.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
816.000 ₫
816.000 ₫
5
796.000 ₫
3.980.000 ₫
MOQ 1 · Order multiple 1
