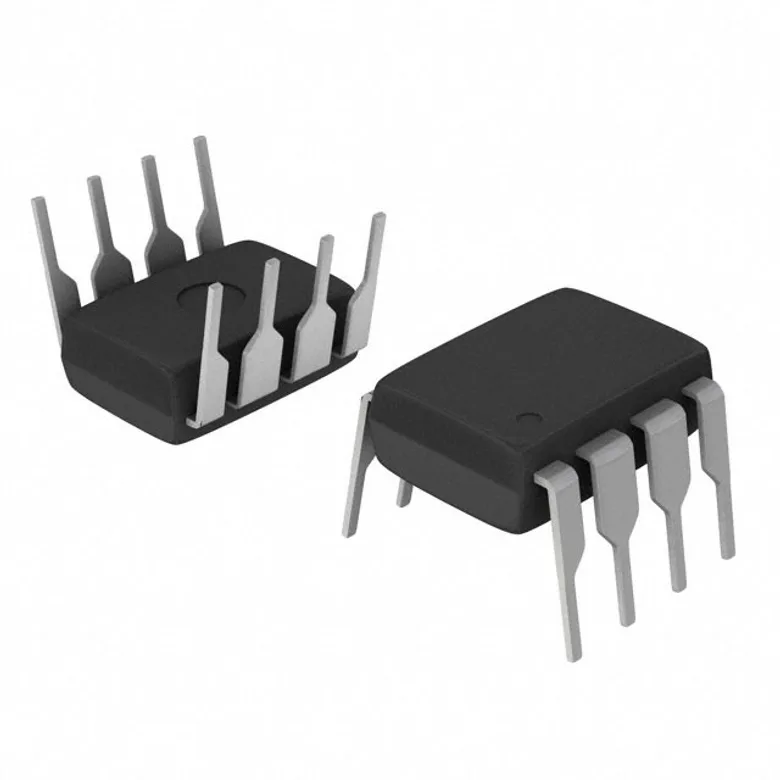

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
NVE Corp/Isolation Products IL 712T-2E
Manufacturer
Manufacturer Product Number
IL 712T-2E
Description
DGTL ISOLTR 2.5KV 2CH GP 8-DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
General Purpose Digital Isolator 2500Vrms 2 Channel 110Mbps 30kV/µs CMTI 8-DIP (0.300", 7.62mm)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
NVE Corp/Isolation Products
Operating Temperature
-40°C ~ 125°C
Voltage - Supply
3V ~ 5.5V
Data Rate
110Mbps
Technology
GMR (Giant Magnetoresistive)
Voltage - Isolation
2500Vrms
Mounting Type
Through Hole
Inputs - Side 1/Side 2
1/1
Supplier Device Package
8-PDIP
Package / Case
8-DIP (0.300", 7.62mm)
Rise / Fall Time (Typ)
1ns, 1ns
Common Mode Transient Immunity (Min)
30kV/µs
Propagation Delay tpLH / tpHL (Max)
15ns, 15ns
Isolated Power
No
Channel Type
Unidirectional
Pulse Width Distortion (Max)
3ns
Type
General Purpose
Number of Channels
2
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
IL 712T-2E
5093803
390-IL712T-2E-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 112.000 ₫ 112.000 ₫
112.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1,000
112.000 ₫
112.000.000 ₫
MOQ 1,000 · Order multiple 1,000
