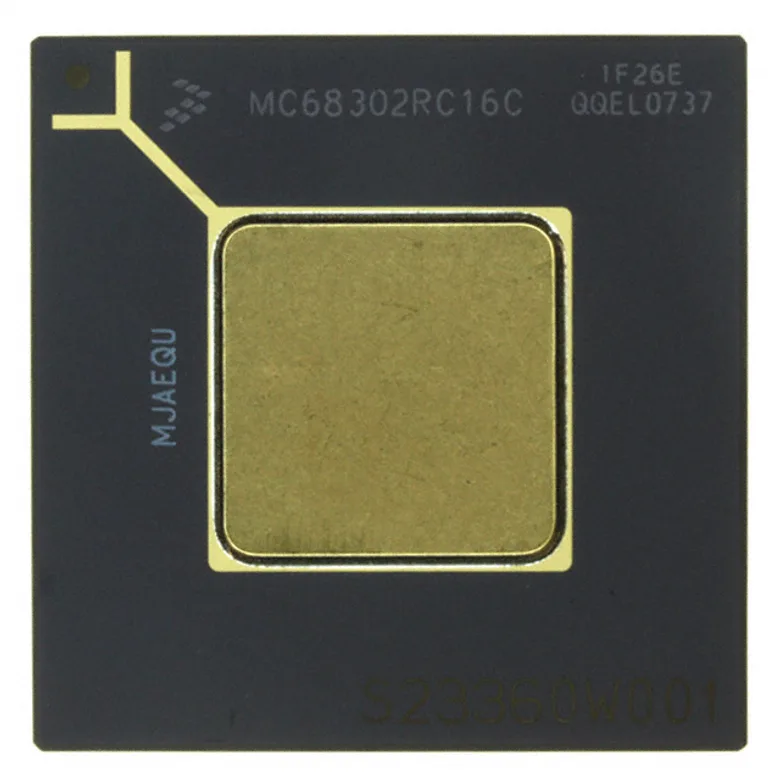

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
NXP USA Inc. MC68302CRC16C
Manufacturer
Manufacturer Product Number
MC68302CRC16C
Description
IC MPU M683XX 16MHZ 132PGA
Manufacturer Standard Lead Time Contact us
Detailed Description
M68000 Microprocessor IC M683xx 1 Core, 8/16-Bit 16MHz 132-PGA (34.5x34.5)
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
NXP USA Inc.
Product Status
Obsolete
Operating Temperature
-40°C ~ 85°C (TA)
Core Processor
M68000
Mounting Type
Through Hole
Voltage - I/O
5.0V
Supplier Device Package
132-PGA (34.5x34.5)
Speed
16MHz
Ethernet
-
USB
-
Package / Case
132-BPGA Exposed Pad
Number of Cores/Bus Width
1 Core, 8/16-Bit
Co-Processors/DSP
Communications; RISC CPM
RAM Controllers
DRAM
Graphics Acceleration
No
Display & Interface Controllers
-
Security Features
-
SATA
-
Additional Interfaces
GCI, IDL, ISDN, NMSI, PCM, SCPI
Documents & Media
Resource Type
Link
Manuals
Environmental Information
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
MC68302CRC16C
1167322
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
