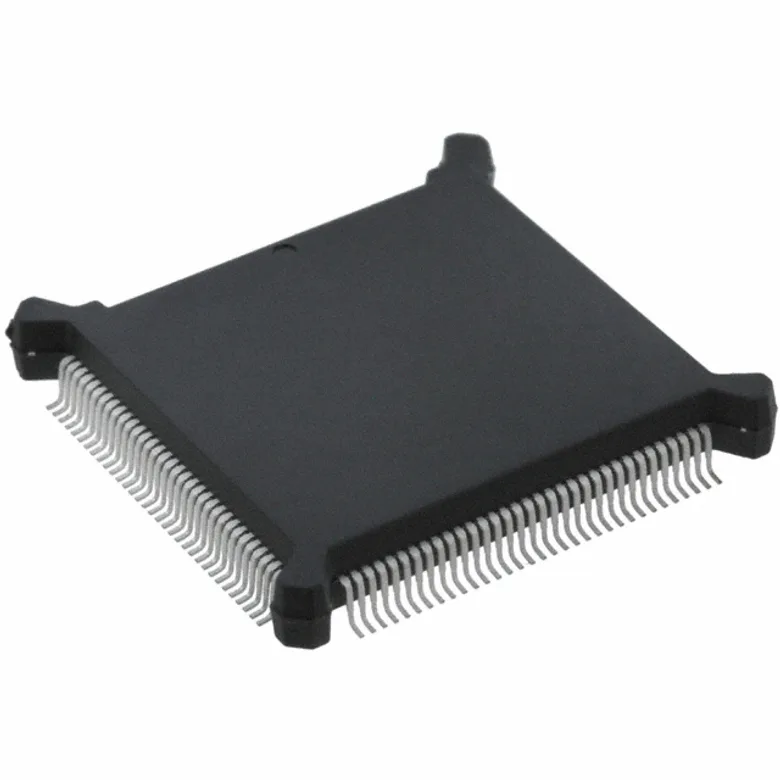

NXP USA Inc. MC68302EH20CB1
Manufacturer
Manufacturer Product Number
MC68302EH20CB1
Description
IC MPU M683XX 20MHZ 132PQFP
Manufacturer Standard Lead Time Contact us
Detailed Description
M68000 Microprocessor IC M683xx 1 Core, 8/16-Bit 20MHz 132-PQFP (46x46)
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
NXP USA Inc.
Product Status
Obsolete
Operating Temperature
0°C ~ 70°C (TA)
Core Processor
M68000
Mounting Type
Surface Mount
Voltage - I/O
5.0V
Supplier Device Package
132-PQFP (46x46)
Speed
20MHz
Ethernet
-
USB
-
Package / Case
132-BQFP Bumpered
Number of Cores/Bus Width
1 Core, 8/16-Bit
Co-Processors/DSP
Communications; RISC CPM
RAM Controllers
DRAM
Graphics Acceleration
No
Display & Interface Controllers
-
Security Features
-
SATA
-
Additional Interfaces
GCI, IDL, ISDN, NMSI, PCM, SCPI
