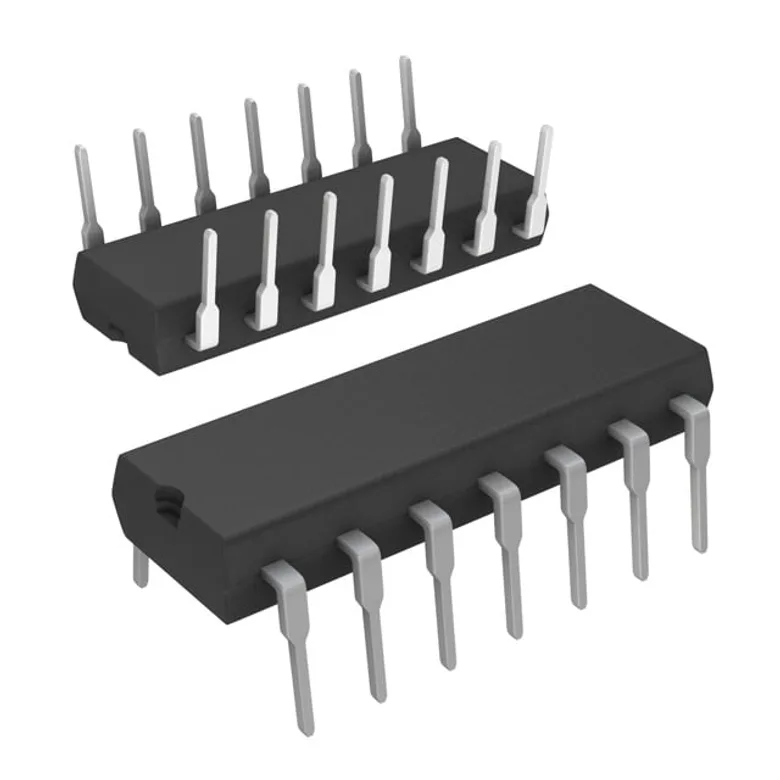

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
NXP USA Inc. N74F5074N,602
Manufacturer
Manufacturer Product Number
N74F5074N,602
Description
IC FF D-TYPE DOUBLE 1BIT 14-DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
Flip Flop 2 Element D-Type 1 Bit Positive Edge 14-DIP (0.300", 7.62mm)
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
NXP USA Inc.
Product Status
Obsolete
Number of Bits per Element
1
Operating Temperature
0°C ~ 70°C (TA)
Voltage - Supply
4.5V ~ 5.5V
Output Type
Complementary
Current - Quiescent (Iq)
30 mA
Current - Output High, Low
15mA, 20mA
Trigger Type
Positive Edge
Mounting Type
Through Hole
Clock Frequency
120 MHz
Supplier Device Package
14-DIP
Max Propagation Delay @ V, Max CL
6ns @ 5V, 50pF
Number of Elements
2
Package / Case
14-DIP (0.300", 7.62mm)
Type
D-Type
Function
Set(Preset) and Reset
Documents & Media
Resource Type
Link
Datasheets
Environmental Information
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
N74F5074N,602
1023664
568-3180-5-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 35.000 ₫ 35.000 ₫
35.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1,000
35.000 ₫
35.000.000 ₫
MOQ 1,000 · Order multiple 1,000
