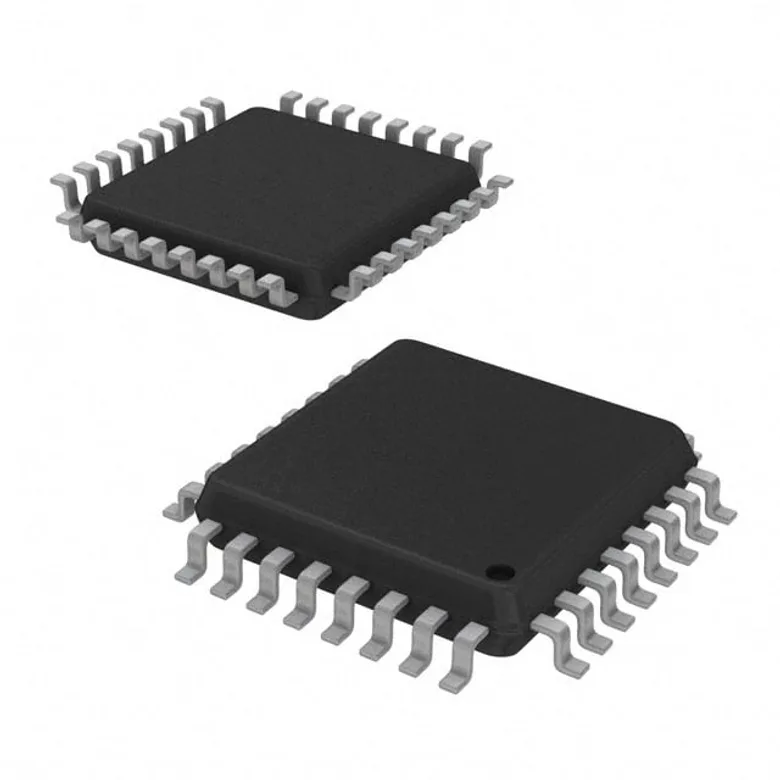

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
NXP USA Inc. S912ZVMAL3F0MLC
Manufacturer
Manufacturer Product Number
S912ZVMAL3F0MLC
Description
IC MCU 16BIT 32KB FLASH 32LQFP
Manufacturer Standard Lead Time Contact us
Detailed Description
S12Z S12 MagniV Microcontroller IC 16-Bit 32MHz 32KB (32K x 8) FLASH 32-LQFP (7x7)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
NXP USA Inc.
Number of I/O
10
Operating Temperature
-40°C ~ 125°C (TA)
DigiKey Programmable
Not Verified
Oscillator Type
Internal
Program Memory Type
FLASH
EEPROM Size
128 x 8
Core Processor
S12Z
Data Converters
A/D 4x10b
Core Size
16-Bit
Mounting Type
Surface Mount
Supplier Device Package
32-LQFP (7x7)
Speed
32MHz
Program Memory Size
32KB (32K x 8)
RAM Size
2K x 8
Package / Case
32-LQFP
Voltage - Supply (Vcc/Vdd)
3.5V ~ 20V
Connectivity
LINbus, SCI, SPI
Peripherals
PWM, WDT
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
S912ZVMAL3F0MLC
9806052
568-14812-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1,250
Packaging Quantity Unit Price Ext Price
1 212.000 ₫ 212.000 ₫
212.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
212.000 ₫
212.000 ₫
10
164.000 ₫
1.640.000 ₫
25
152.000 ₫
3.800.000 ₫
100
139.000 ₫
13.900.000 ₫
250
133.000 ₫
33.250.000 ₫
500
129.000 ₫
64.500.000 ₫
1,250
125.000 ₫
156.250.000 ₫
MOQ 1 · Order multiple 1
