Image shown is representative only. Exact specifications should be obtained from the product datasheet.

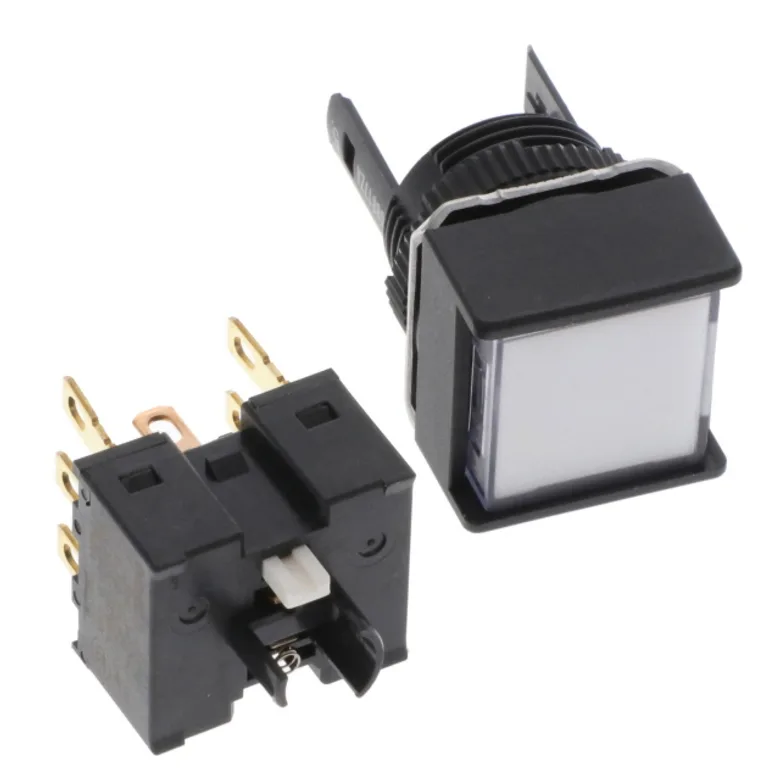

Omron Automation and Safety A165-AWA-2
Manufacturer
Manufacturer Product Number
A165-AWA-2
Description
SWITCH PUSHBUTTON DPDT 5A 125V
Manufacturer Standard Lead Time Contact us
Detailed Description
Pushbutton Switch DPDT Standard Panel Mount, Front
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Omron Automation and Safety
Switch Function
On-On
Operating Temperature
-10°C ~ 55°C
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
Features
-
Illumination Type, Color
-
Illumination Voltage (Nominal)
-
Actuator Type
Square, Button
Current Rating (Amps)
5A (AC)
Mounting Type
Panel Mount, Front
Ingress Protection
IP66 - Dust Tight, Oil and Water Resistant
Panel Cutout Dimensions
Circular - 16.00mm Dia
Circuit
DPDT
Color - Actuator/Cap
White
Mechanical Life
200,000 Cycles
Electrical Life
100,000 Cycles
Actuator Marking
No Marking
Type
Standard
Voltage Rating - AC
125 V
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Certificates
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
A165-AWA-2
546767
Z11763-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 1.173.000 ₫ 1.173.000 ₫
1.173.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
1.173.000 ₫
1.173.000 ₫
MOQ 1 · Order multiple 1
