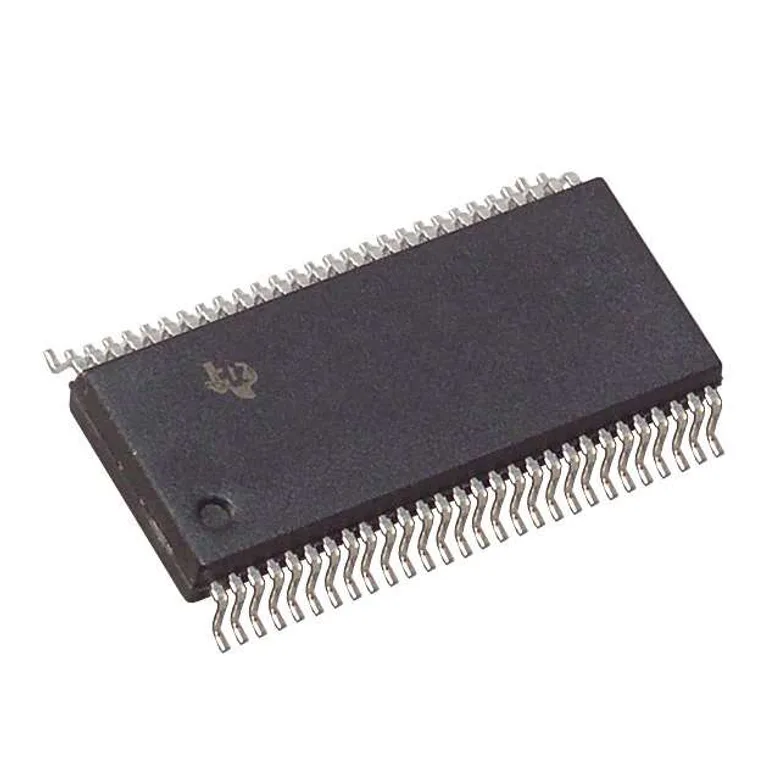

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
onsemi 74ABT16501CSSC
Manufacturer
Manufacturer Product Number
74ABT16501CSSC
Description
IC UNIV BUS TXRX 56-SSOP
Manufacturer Standard Lead Time Contact us
Detailed Description
Universal Bus Transceiver 18-Bit 56-SSOP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
onsemi
Product Status
Obsolete
Logic Type
Universal Bus Transceiver
Operating Temperature
-40°C ~ 85°C
Voltage - Supply
4.5V ~ 5.5V
Current - Output High, Low
3mA, 64mA
Number of Circuits
18-Bit
Mounting Type
Surface Mount
Supplier Device Package
56-SSOP
Package / Case
56-BSSOP (0.295", 7.50mm Width)
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
74ABT16501CSSC
146476
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Substitutes
SN74ABT162501DL
IC UNIV BUS TXRX 56-SSOP
60.000Â â‚« Texas Instruments
SN74ABT16501DL
IC UNIV BUS TXRX 56-SSOP
109.000Â â‚« Texas Instruments
