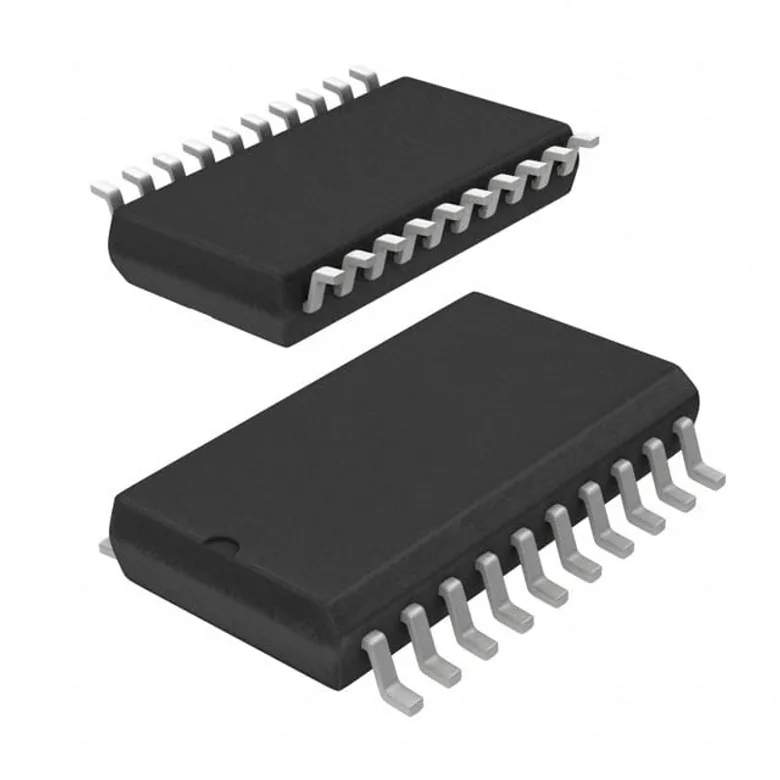

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
onsemi 74ACT273SCX
Manufacturer
Manufacturer Product Number
74ACT273SCX
Description
IC FF D-TYPE SINGLE 8BIT 20SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-SOIC (0.295", 7.50mm Width)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
onsemi
Product Status
Obsolete
Number of Bits per Element
8
Operating Temperature
-40°C ~ 85°C (TA)
Voltage - Supply
4.5V ~ 5.5V
Output Type
Non-Inverted
Current - Quiescent (Iq)
40 µA
Current - Output High, Low
24mA, 24mA
Trigger Type
Positive Edge
Mounting Type
Surface Mount
Clock Frequency
189 MHz
Input Capacitance
4.5 pF
Supplier Device Package
20-SOIC
Max Propagation Delay @ V, Max CL
8.5ns @ 5V, 50pF
Number of Elements
1
Package / Case
20-SOIC (0.295", 7.50mm Width)
Type
D-Type
Function
Master Reset
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
74ACT273SCX
979064
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Substitutes
MC74ACT273DWR2G
IC FF D-TYPE SINGLE 8BIT 20SOIC
14.000Â â‚« onsemi
74AHCT273D,118
IC FF D-TYPE SINGLE 8-BIT 20-SO
15.000Â â‚« Nexperia USA Inc.
CD74ACT273M96
IC FF D-TYPE SINGLE 8BIT 20SOIC
32.000Â â‚« Texas Instruments
MC74ACT273DWG
IC FF D-TYPE SINGLE 8BIT 20SOIC
28.000Â â‚« onsemi
CD74ACT273M
IC FF D-TYPE SINGLE 8BIT 20SOIC
