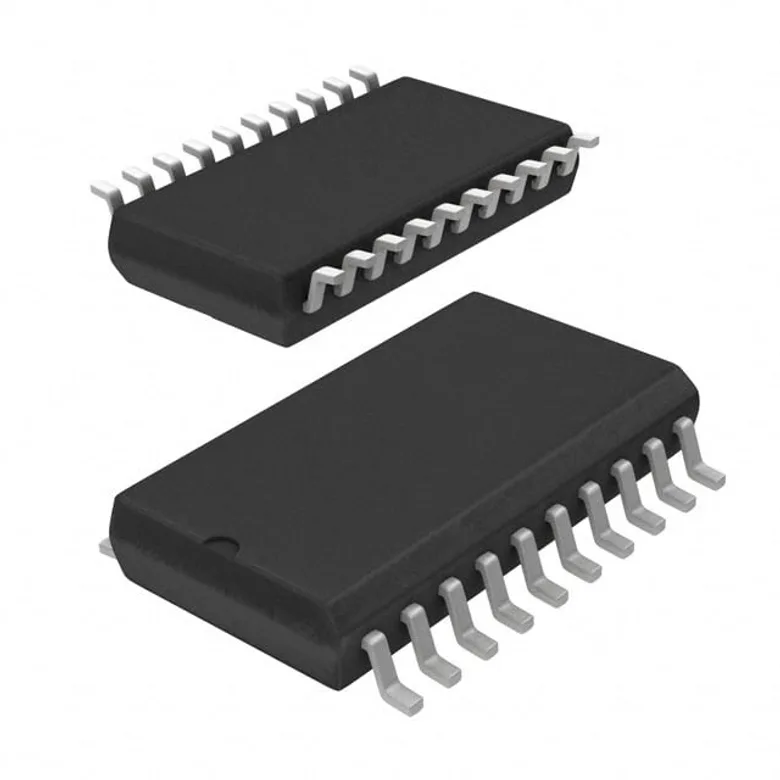

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
onsemi 74ACT534SC
Manufacturer
Manufacturer Product Number
74ACT534SC
Description
IC FF D-TYPE SINGLE 8BIT 20SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-SOIC (0.295", 7.50mm Width)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
onsemi
Product Status
Obsolete
Number of Bits per Element
8
Operating Temperature
-40°C ~ 85°C (TA)
Voltage - Supply
4.5V ~ 5.5V
Output Type
Tri-State, Inverted
Current - Quiescent (Iq)
40 µA
Current - Output High, Low
24mA, 24mA
Trigger Type
Positive Edge
Mounting Type
Surface Mount
Clock Frequency
100 MHz
Input Capacitance
4.5 pF
Supplier Device Package
20-SOIC
Max Propagation Delay @ V, Max CL
11.5ns @ 5V, 50pF
Number of Elements
1
Package / Case
20-SOIC (0.295", 7.50mm Width)
Type
D-Type
Function
Standard
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
74ACT534SC
979072
74ACT534SC-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 24.000 ₫ 24.000 ₫
24.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1,080
24.000 ₫
25.920.000 ₫
MOQ 1,080 · Order multiple 1,080
Substitutes
SN74ACT534DW
IC FF D-TYPE SINGLE 8BIT 20SOIC
29.000 ₫ Texas Instruments
SN74ACT534DWR
IC FF D-TYPE SINGLE 8BIT 20SOIC
17.000 ₫ Texas Instruments
