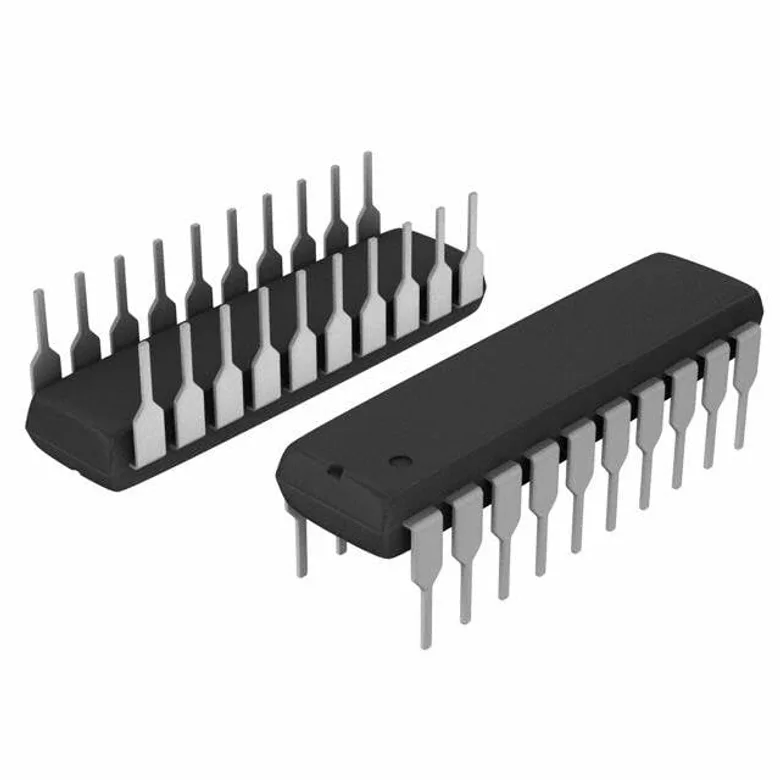

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
onsemi 74ACT563PC
Manufacturer
Manufacturer Product Number
74ACT563PC
Description
IC D-TYPE TRANSP 8:8 20-PDIP
Manufacturer Standard Lead Time Contact us
Detailed Description
D-Type Transparent Latch 1 Channel 8:8 IC Tri-State 20-PDIP
Product Attributes
Type
Description
Manufacturer
onsemi
Product Status
Obsolete
Logic Type
D-Type Transparent Latch
Operating Temperature
-40°C ~ 85°C
Qualification
-
Voltage - Supply
4.5V ~ 5.5V
Output Type
Tri-State
Independent Circuits
1
Current - Output High, Low
24mA, 24mA
Mounting Type
Through Hole
Delay Time - Propagation
7ns
Supplier Device Package
20-PDIP
Circuit
8:8
Package / Case
20-DIP (0.300", 7.62mm)
Grade
-
Documents & Media
Resource Type
Link
Environmental Information
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
74ACT563PC
979962
74ACT563PC-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 19.000 ₫ 19.000 ₫
19.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
450
19.000 ₫
8.550.000 ₫
MOQ 450 · Order multiple 450
Substitutes
SN74ACT563N
IC D-TYPE TRANSP 8:8 20-PDIP
32.000 ₫ Texas Instruments
SN74ACT573N
IC D-TYPE TRANSP 8:8 20-PDIP
28.000 ₫ Texas Instruments
SN74ACT573NE4
IC D-TYPE TRANSP 8:8 20-PDIP
28.000 ₫ Texas Instruments
TC74ACT573P(F)
IC D-TYPE TRANSP 8:8 20-DIP
17.000 ₫ Toshiba Semiconductor and Storage
