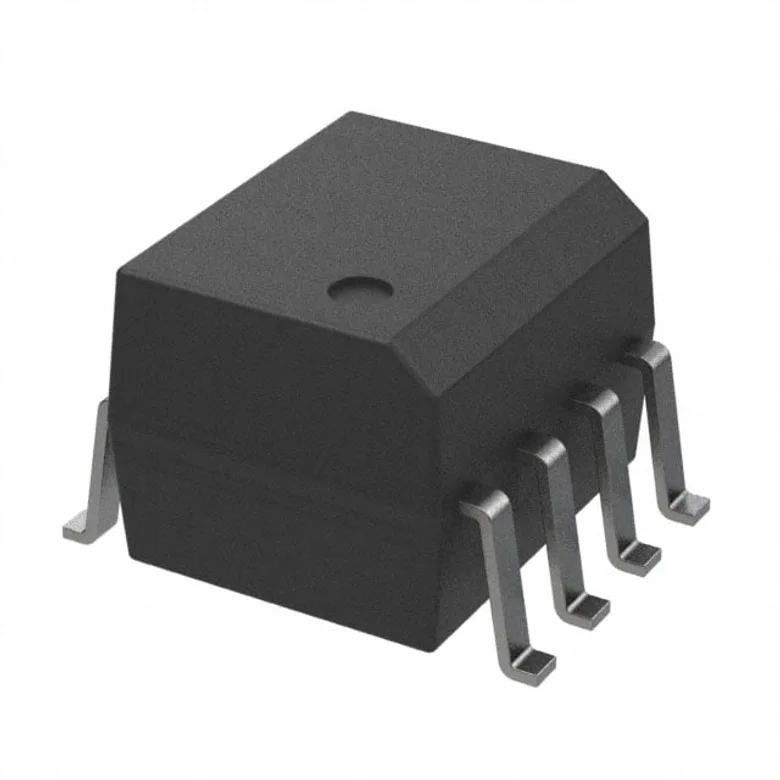

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
onsemi FOD2742B
Manufacturer
Manufacturer Product Number
FOD2742B
Description
OPTOISO 2.5KV 1CH TRANS 8-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
OPTOISO 2.5KV 1CH TRANS 8-SOIC
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
onsemi
Operating Temperature
-25°C ~ 85°C
Voltage - Forward (Vf) (Typ)
1.2V
Output Type
Transistor
Input Type
DC
Current - Output / Channel
50mA
Voltage - Isolation
2500Vrms
Current Transfer Ratio (Min)
100% @ 10mA
Vce Saturation (Max)
400mV
Current Transfer Ratio (Max)
200% @ 10mA
Mounting Type
Surface Mount
Supplier Device Package
8-SOIC
Voltage - Output (Max)
70V
Package / Case
8-SOIC (0.154", 3.90mm Width)
Turn On / Turn Off Time (Typ)
-
Rise / Fall Time (Typ)
-
Number of Channels
1
Documents & Media
Resource Type
Link
Datasheets
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
FOD2742B
10267992
488-FOD2742B-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1,813
Packaging Quantity Unit Price Ext Price
1 39.000 ₫ 39.000 ₫
39.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
39.000 ₫
39.000 ₫
10
28.000 ₫
280.000 ₫
100
21.000 ₫
2.100.000 ₫
500
18.000 ₫
9.000.000 ₫
1,000
17.000 ₫
17.000.000 ₫
3,000
16.000 ₫
48.000.000 ₫
6,000
15.000 ₫
90.000.000 ₫
12,000
15.000 ₫
180.000.000 ₫
MOQ 1 · Order multiple 1
