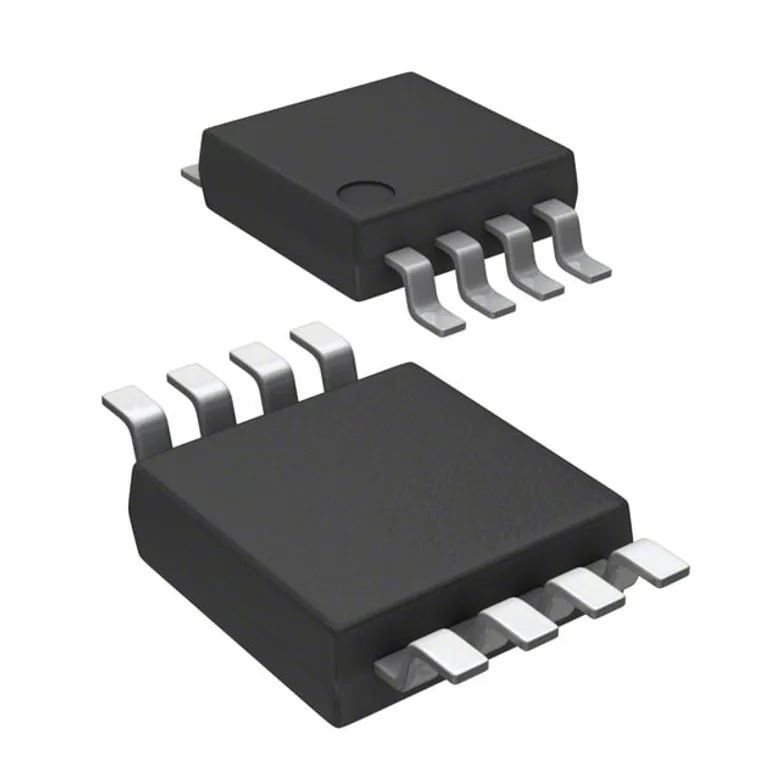

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
onsemi MC100LVEL12DTG
Manufacturer
Manufacturer Product Number
MC100LVEL12DTG
Description
IC NOR/OR GATE 1-CIR 8-TSSOP
Manufacturer Standard Lead Time 10 Days
Detailed Description
NOR/OR Gate Configurable 1 Circuit 2 Input 8-TSSOP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
onsemi
Product Status
Obsolete
Logic Type
NOR/OR Gate
Operating Temperature
-40°C ~ 85°C
Voltage - Supply
-3V ~ -3.8V
Output Type
Differential
Current - Output High, Low
-
Number of Inputs
2
Mounting Type
Surface Mount
Supplier Device Package
8-TSSOP
Schmitt Trigger Input
No
Package / Case
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Number of Circuits
1
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
MC100LVEL12DTG
920722
2156-MC100LVEL12DTG-ON-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 7,586
Packaging Quantity Unit Price Ext Price
1 107.000 ₫ 107.000 ₫
107.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
73
107.000 ₫
7.811.000 ₫
MOQ 73 · Order multiple 73
