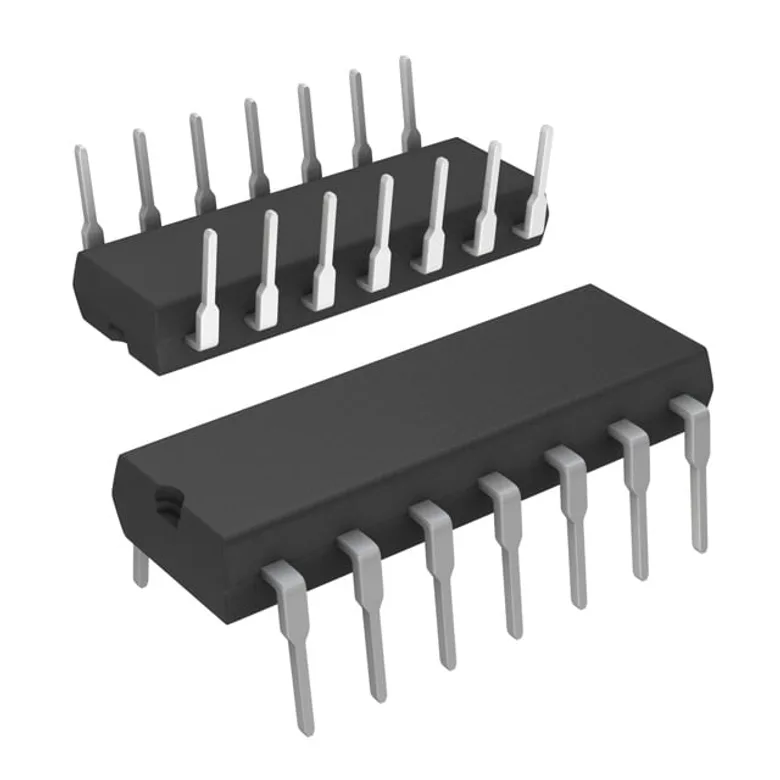

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
onsemi MC14541BCPG
Manufacturer
Manufacturer Product Number
MC14541BCPG
Description
IC OSC PROG TIMER 3MHZ 14-DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
Programmable Timer IC 3MHz 14-PDIP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
onsemi
Product Status
Obsolete
Operating Temperature
-55°C ~ 125°C
Voltage - Supply
3V ~ 18V
Count
-
Mounting Type
Through Hole
Supplier Device Package
14-PDIP
Frequency
3MHz
Package / Case
14-DIP (0.300", 7.62mm)
Type
Programmable Timer
Current - Supply
15 µA
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
MC14541BCPG
918952
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
