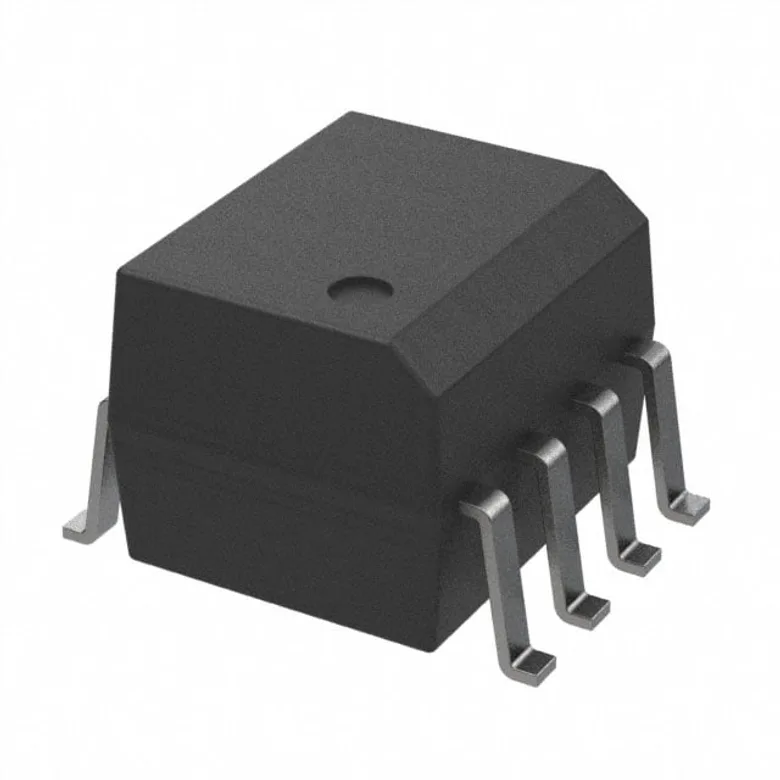

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
onsemi MOCD213R2M
Manufacturer
Manufacturer Product Number
MOCD213R2M
Description
OPTOISO 2.5KV 2CH TRANS 8-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
OPTOISO 2.5KV 2CH TRANS 8-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
onsemi
Operating Temperature
-40°C ~ 100°C
Voltage - Forward (Vf) (Typ)
1.25V
Output Type
Transistor
Input Type
DC
Current - Output / Channel
150mA
Voltage - Isolation
2500Vrms
Current Transfer Ratio (Min)
100% @ 10mA
Vce Saturation (Max)
400mV
Current Transfer Ratio (Max)
-
Mounting Type
Surface Mount
Supplier Device Package
8-SOIC
Voltage - Output (Max)
70V
Package / Case
8-SOIC (0.154", 3.90mm Width)
Turn On / Turn Off Time (Typ)
7.5µs, 5.7µs
Rise / Fall Time (Typ)
1.6µs, 2.2µs
Number of Channels
2
Current - DC Forward (If) (Max)
60 mA
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
MOCD213R2M
1626442
MOCD213R2MCT-ND
MOCD213R2MDKR-ND
MOCD213R2MTR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 81,885
Packaging Quantity Unit Price Ext Price
1 26.000 ₫ 26.000 ₫
26.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
26.000 ₫
26.000 ₫
10
19.000 ₫
190.000 ₫
100
14.000 ₫
1.400.000 ₫
500
12.000 ₫
6.000.000 ₫
1,000
11.000 ₫
11.000.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
26.000 ₫
26.000 ₫
10
19.000 ₫
190.000 ₫
100
14.000 ₫
1.400.000 ₫
500
12.000 ₫
6.000.000 ₫
1,000
11.000 ₫
11.000.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
2,500
10.000 ₫
25.000.000 ₫
5,000
9.000 ₫
45.000.000 ₫
7,500
9.000 ₫
67.500.000 ₫
12,500
9.000 ₫
112.500.000 ₫
17,500
9.000 ₫
157.500.000 ₫
25,000
9.000 ₫
225.000.000 ₫
MOQ 2,500 · Order multiple 2,500
