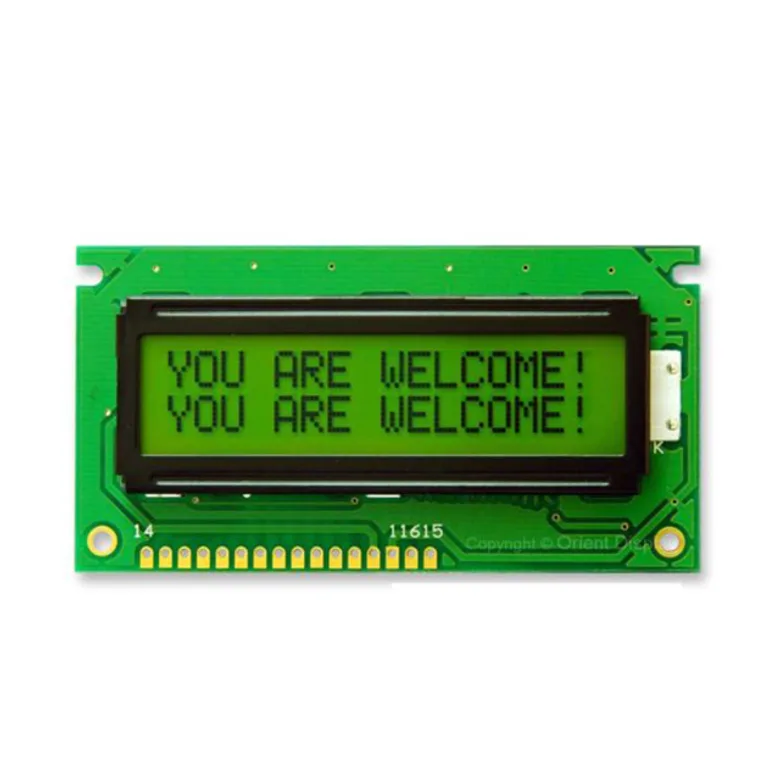

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Orient Display AMC1602GR-B-Y6NFDY
Manufacturer
Manufacturer Product Number
AMC1602GR-B-Y6NFDY
Description
LCD COB CHAR 16X2 Y/G TRANSF
Manufacturer Standard Lead Time Contact us
Detailed Description
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel, 8-Bit 84.00mm x 44.00mm x 14.00mm
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Orient Display
Number of Characters
32.0
Operating Temperature
-20°C ~ 70°C
Voltage - Supply
4.5V ~ 5.5V
Viewing Area
64.50mm L x 15.50mm W
Display Type
STN - Super-Twisted Nematic
Character Size
5.55mm H x 2.95mm W
Display Format
16 x 2
Character Format
5 x 8 Dots
Dot Size
0.55mm W x 0.65mm H
Controller Type
S6A0069
Outline L x W x H
84.00mm x 44.00mm x 14.00mm
Interface
Parallel, 8-Bit
Text Color
Dark Blue
Background Color
Yellow/Green
Display Mode
Transflective
Backlight
LED - Yellow/Green
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
AMC1602GR-B-Y6NFDY
11698187
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
