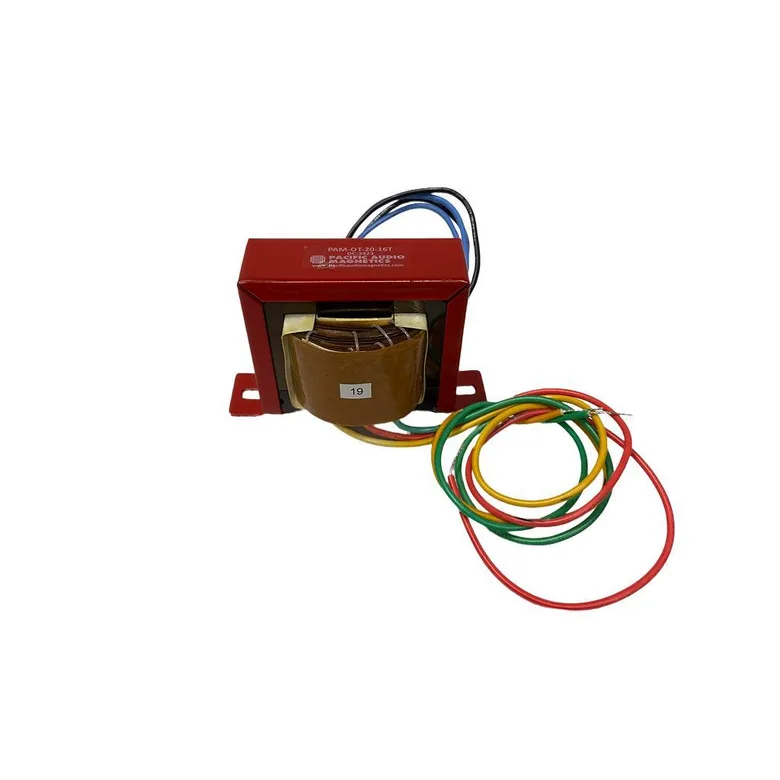

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pacific Transformer PAM-OT-20-16T
Manufacturer
Manufacturer Product Number
PAM-OT-20-16T
Description
Fender 5E3 Tweed Deluxe Output T
Manufacturer Standard Lead Time 5 Days
Detailed Description
12kCT Impedance Primary Ohms 8 Impedance Secondary Ohms Audio Transformer Chassis Mount
Product Attributes
Type
Description
Manufacturer
Pacific Transformer
Return Loss
-
Operating Temperature
-
Termination Style
Wire Leads
Transformer Type
General Purpose
Turns Ratio - Primary:Secondary
-
Insertion Loss
-
Frequency Range
-
Size / Dimension
2.710" L x 2.310" W (68.83mm x 58.67mm)
Voltage - Isolation
-
Approval Agency
-
Mounting Type
Chassis Mount
Height - Seated (Max)
2.280" (57.91mm)
Impedance - Primary (Ohms)
12kCT
Impedance - Secondary (Ohms)
8
DC Resistance (DCR) - Primary
-
DC Resistance (DCR) - Secondary
-
Frequency Response
-
Power Level
20W
Weight
-
Additional Resources
Attribute
Description
Part Number Alias
PAM-OT-20-16T
23026705
5659-PAM-OT-20-16TTB-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 50
Packaging Quantity Unit Price Ext Price
1 1.448.000Â â‚« 1.448.000Â â‚«
1.448.000Â â‚«
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
1.448.000Â â‚«
1.448.000Â â‚«
MOQ 1 · Order multiple 1
