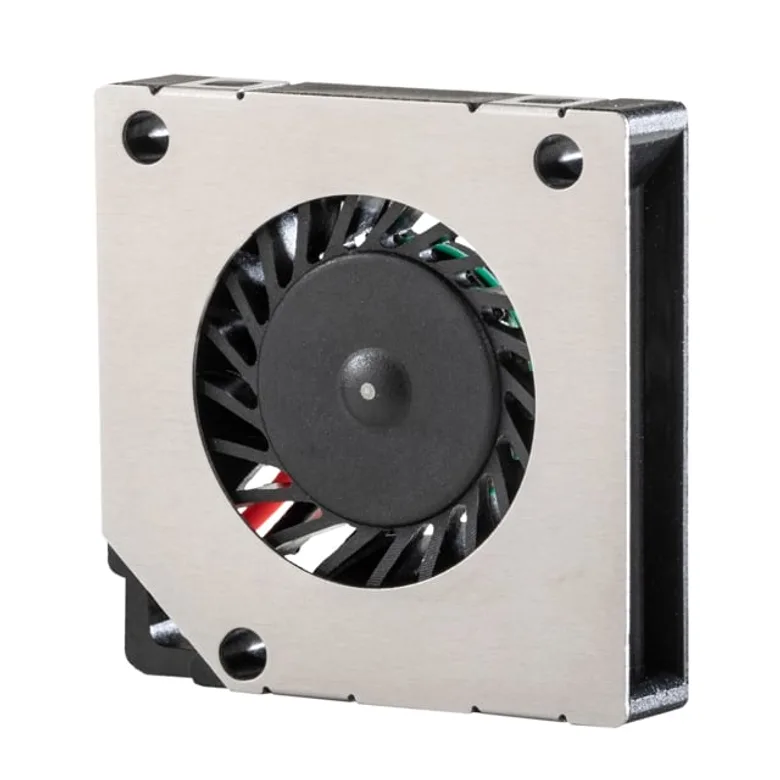

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pelonis Technologies AGB204
Manufacturer
Manufacturer Product Number
AGB204
Description
FAN MICR BLOWER 20X4MM 5VDC WIRE
Manufacturer Standard Lead Time 1 Days
Detailed Description
FAN MICR BLOWER 20X4MM 5VDC WIRE
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pelonis Technologies
Operating Temperature
14 ~ 140°F (-10 ~ 60°C)
Size / Dimension
Square - 20mm L x 20mm H
Features
Locked Rotor Protection, Auto Restart, Polarity Protection
Bearing Type
Axial Groove
Termination
2 Wire Leads
Current Rating (Amps)
-
Approval Agency
CE
Ingress Protection
IP58 - Dust Protected, Waterproof
Fan Type
Micro Blower
Noise
19.6dB(A)
Static Pressure
0.235 in H2O (58.5 Pa)
RPM
11500 RPM
Voltage - Rated
5VDC
Material - Frame
-
Material - Blade
-
Air Flow
0.380 CFM (0.011m³/min)
Width
4.00mm
Weight
0.005 lb (2.27 g)
Documents & Media
Resource Type
Link
CAD Models
Additional Resources
Attribute
Description
Part Number Alias
AGB204
14296465
3611-AGB204-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 249
Packaging Quantity Unit Price Ext Price
1 441.000 ₫ 441.000 ₫
441.000 ₫
All prices are shown in the selected currency
Box · Digikey
Quantity Unit Price Ext Price
1
441.000 ₫
441.000 ₫
10
432.000 ₫
4.320.000 ₫
25
412.000 ₫
10.300.000 ₫
50
386.000 ₫
19.300.000 ₫
100
353.000 ₫
35.300.000 ₫
MOQ 1 · Order multiple 1
